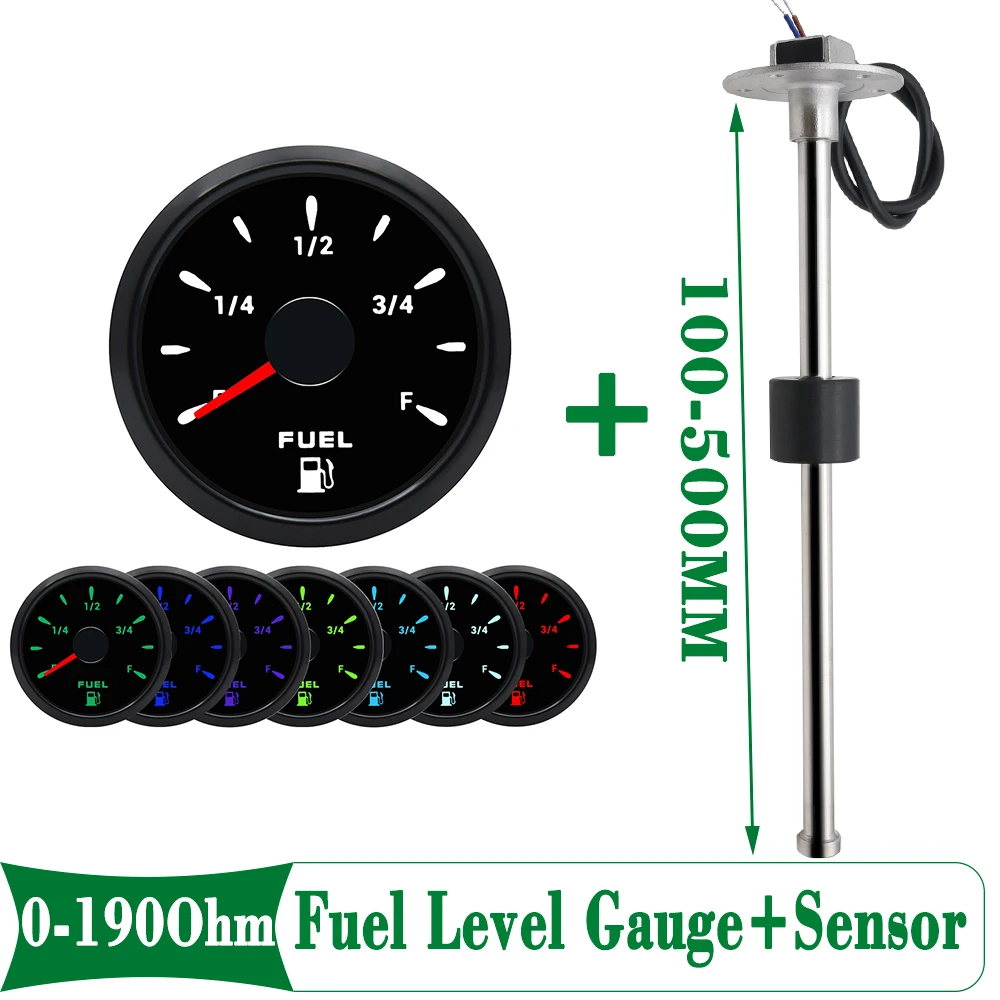

52mm Fuel Level Gauge + 100-500MM Fuel Float Sensor 0-190 ohm Oil Tank Meter Indicator With 7 Color Light For Car Yacht Marine

98% of buyers enjoyed this product!
List price:
Price:
You save:
(%)
List price:
Price:
You save:
()
()
US $0.00 Free
Total Price:
Best price guarantee
Quantity:
View cart
  • 100% Money Back Guarantee
  • 100% Secure Payments
Buyer Protection
Safe shopping
Easy returns and refunds
Free Shipping Worldwide
Product Details
Shipping & Payment
Product Details

Attention , this Item Package just only the Gauge without Sensor

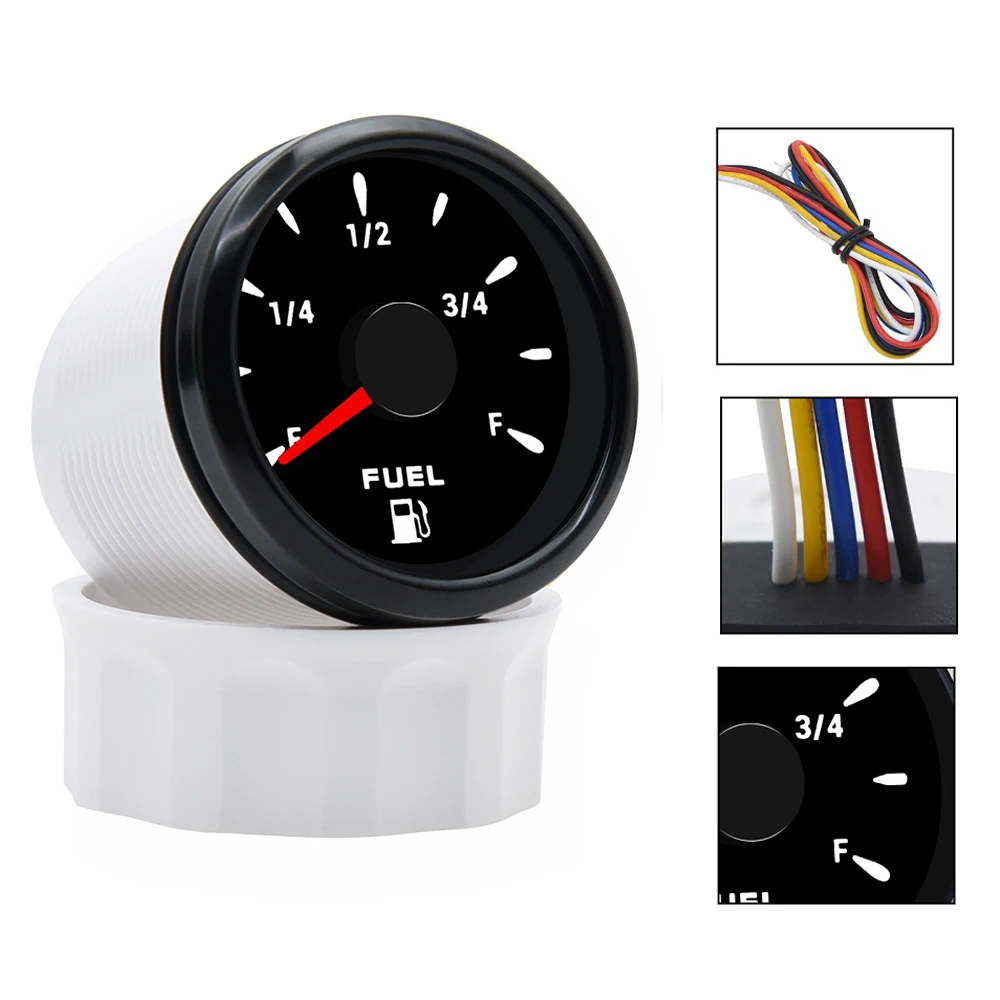

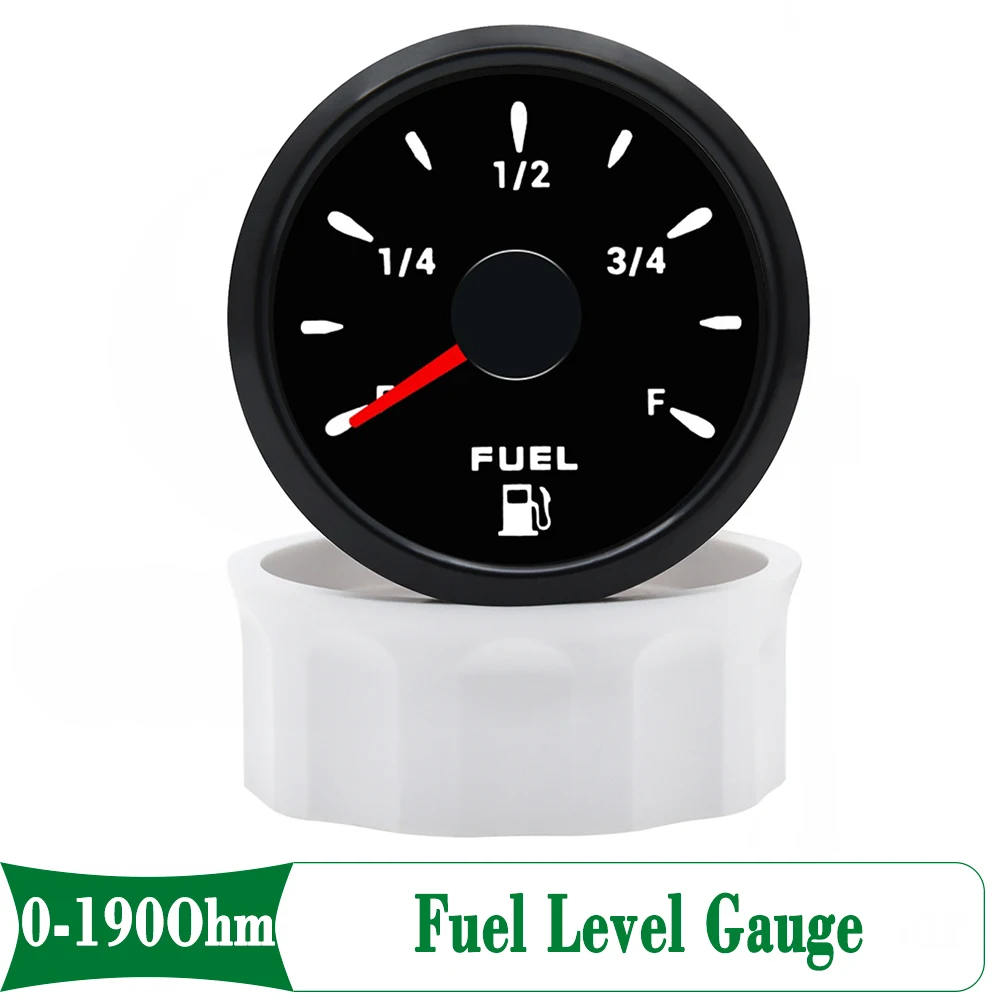

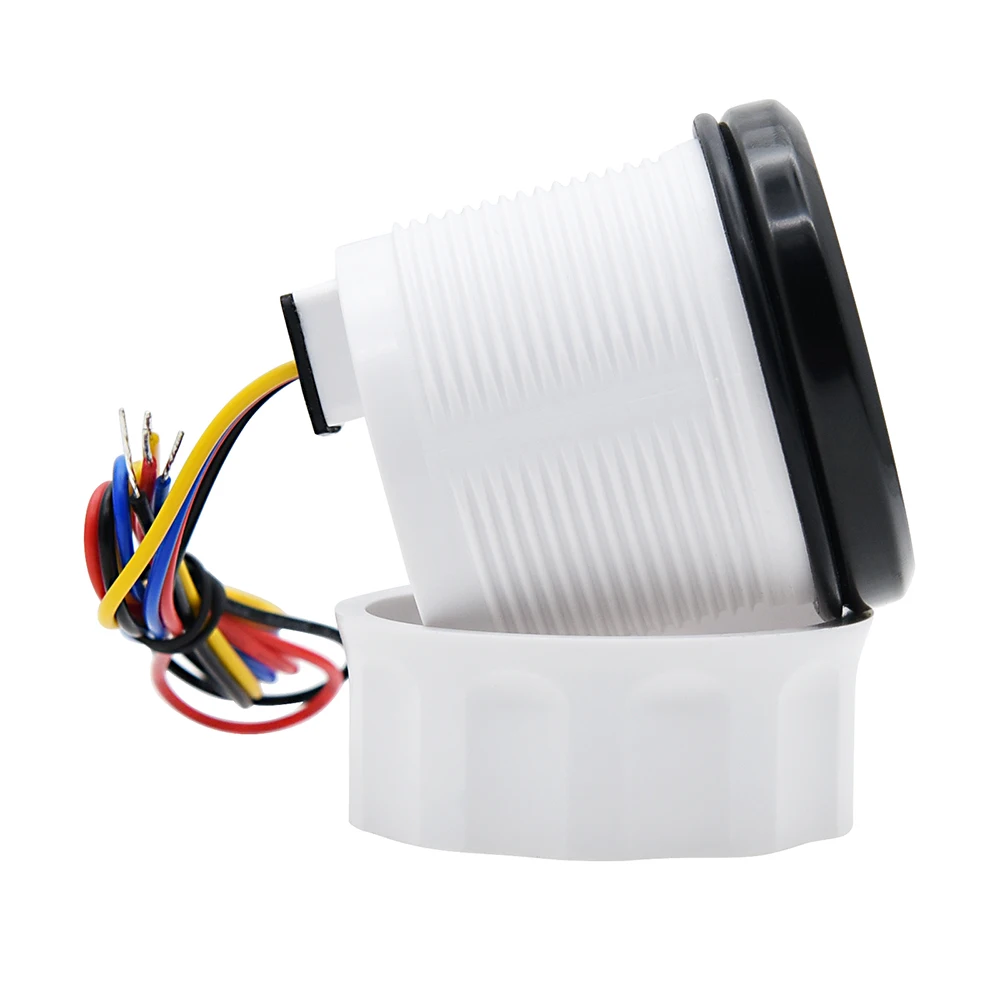

Fuel Level Gauge:

– Indicating Range:E-1/4-1/2-3/4-F
– Name: 52mm Fuel Level Gauge
– Fixing dimension: 52mm or 2-1/16″
– Operating Voltage: 9-32V /fit 12V-24V
– Materials: Plastic
– Input signal:0~190ohm (European standard),

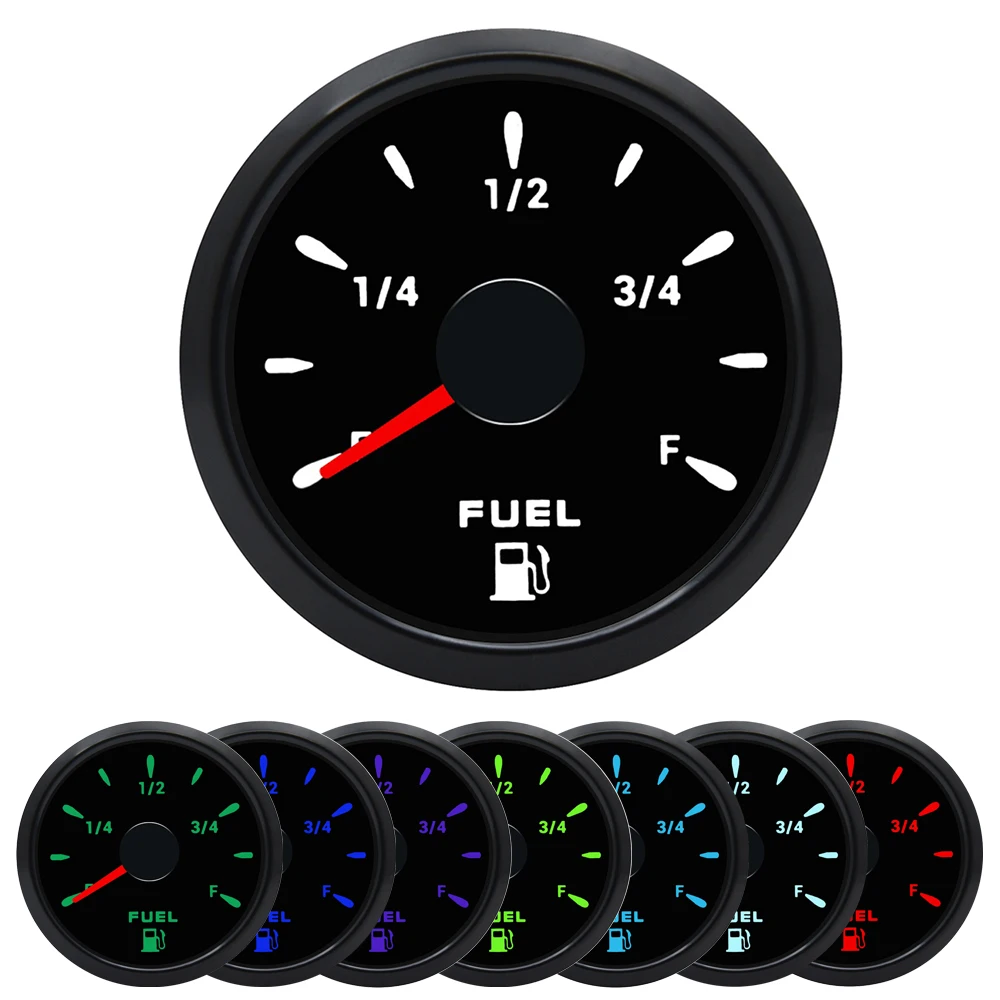

-Backlight Color: 7 Color Light
– Waterproof IP67

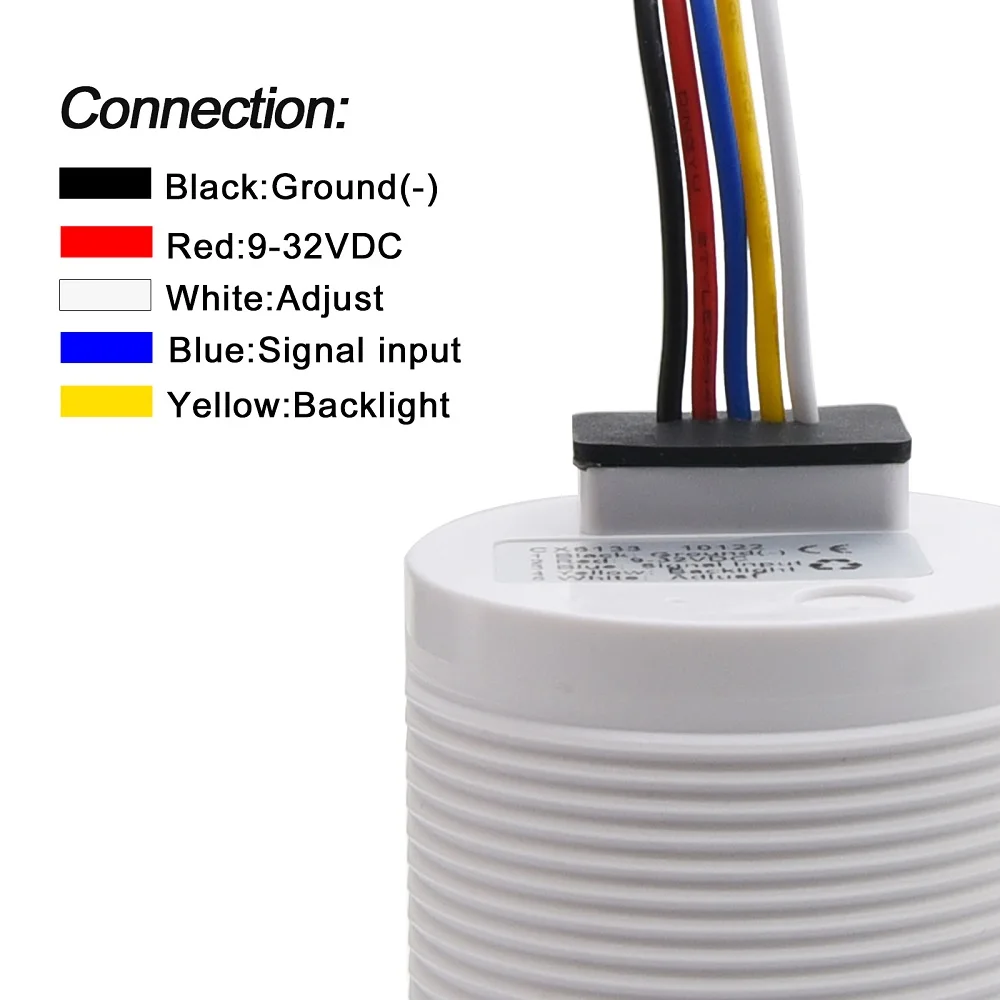

Gauge Connection:

Red line Connect to Battery+(9-32VDC)
Blue Line Connect to Sensor Signal Line
Black Line connect to Battery –
Yellow Line connect to Battery+(9-32VDC)
White Line is adjust the color of backlight when touch the battery –

Package:

1 PCS Gauge+Cable+Manual

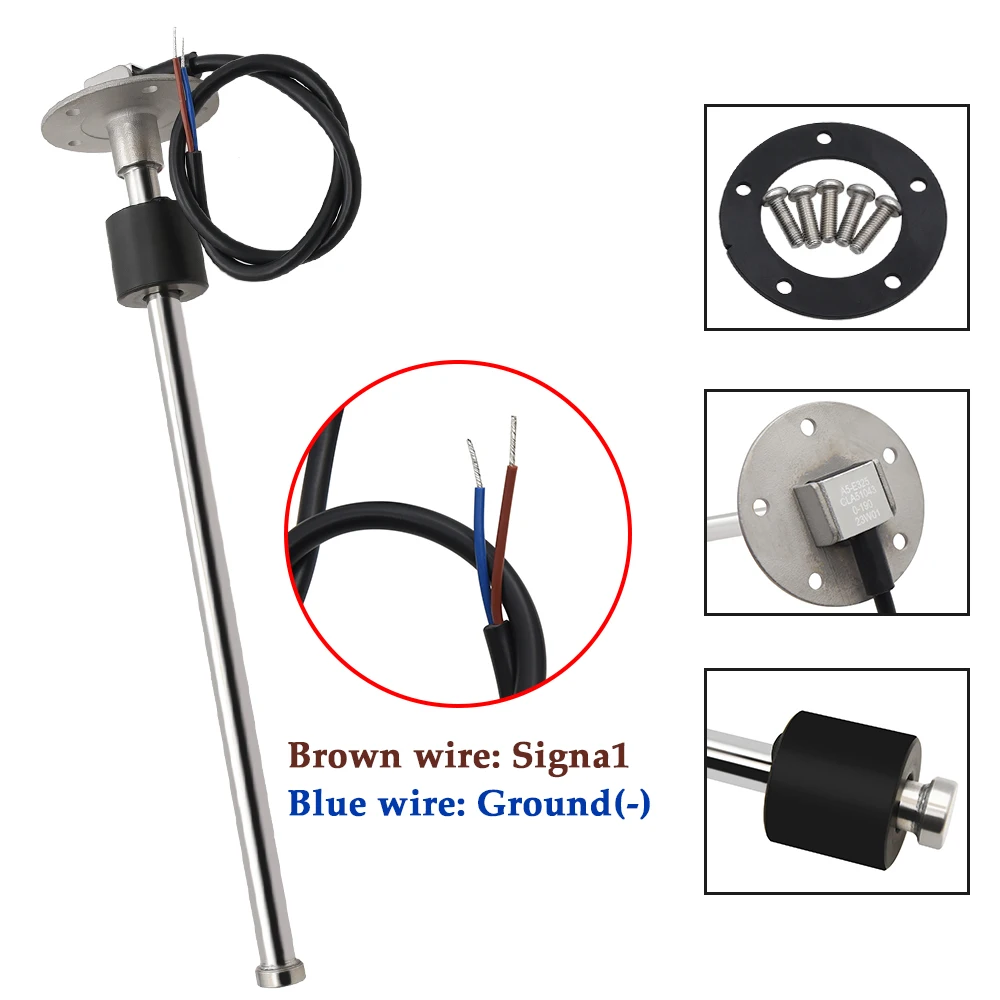

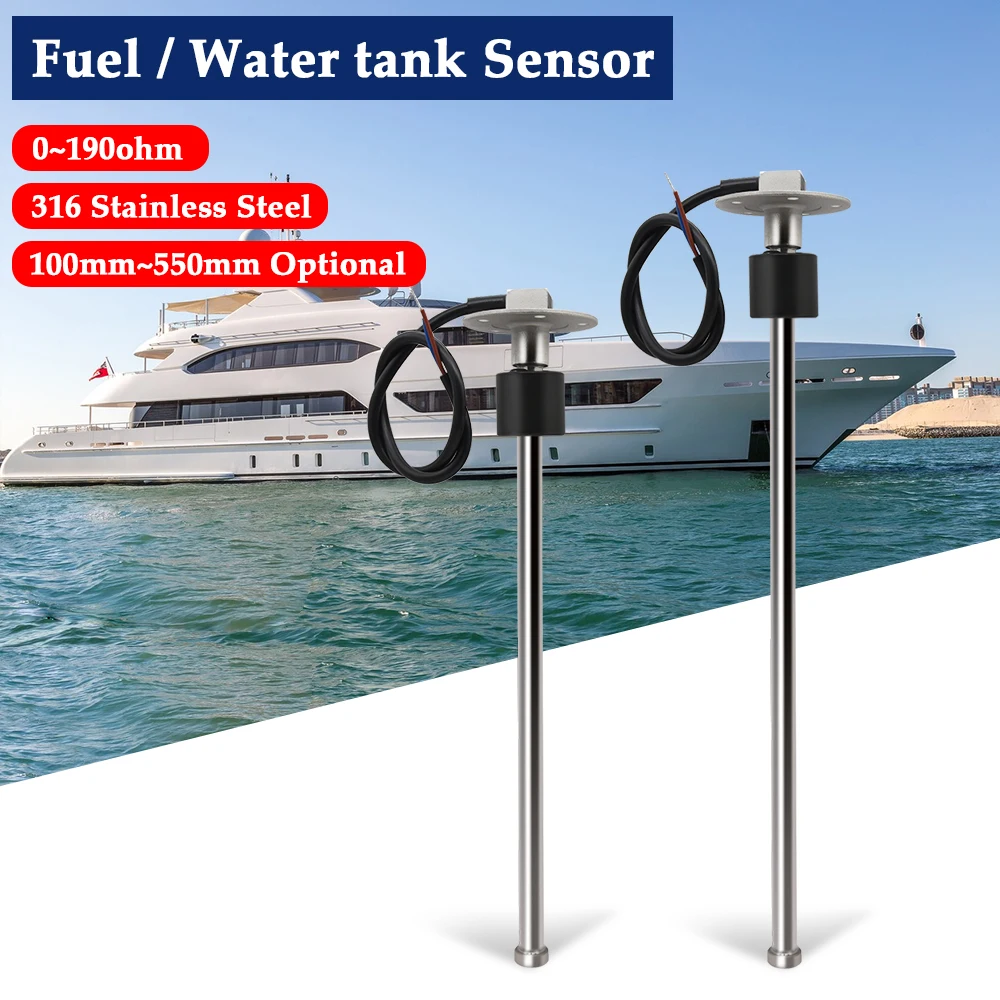

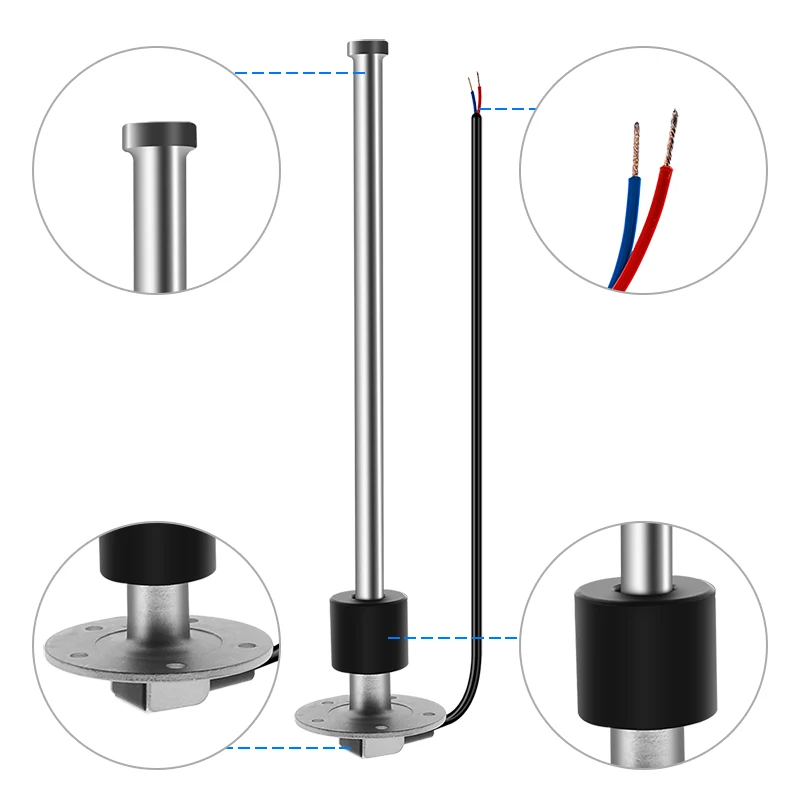

Fuel Level Sensor Specification:

– Protection ank: IP67

– Resolution range: 21 mm

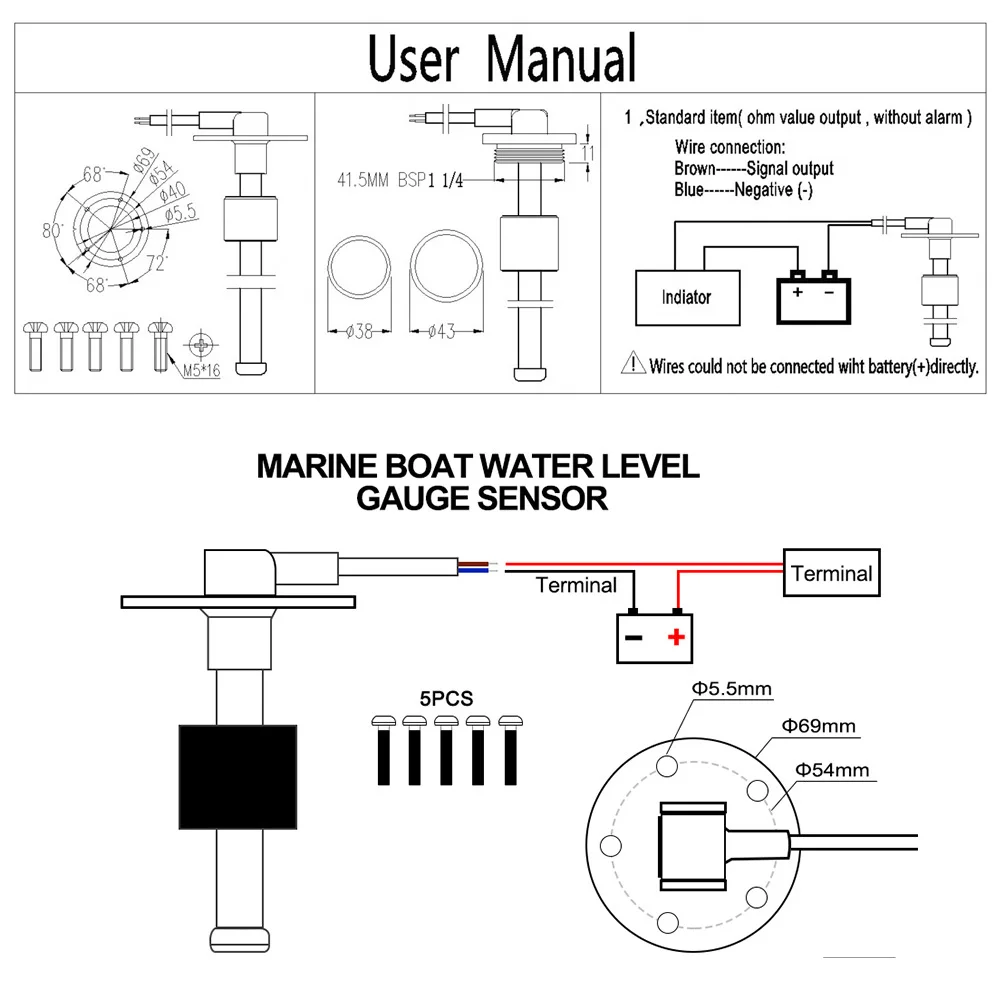

– Assembly: SAE standard 5 holes

– Rated current for alarm switch: 500mA

– Operating temperatures: – 40 to 85 Celsius

– Fit for Fuel Level Gauge and Water Level Gauge

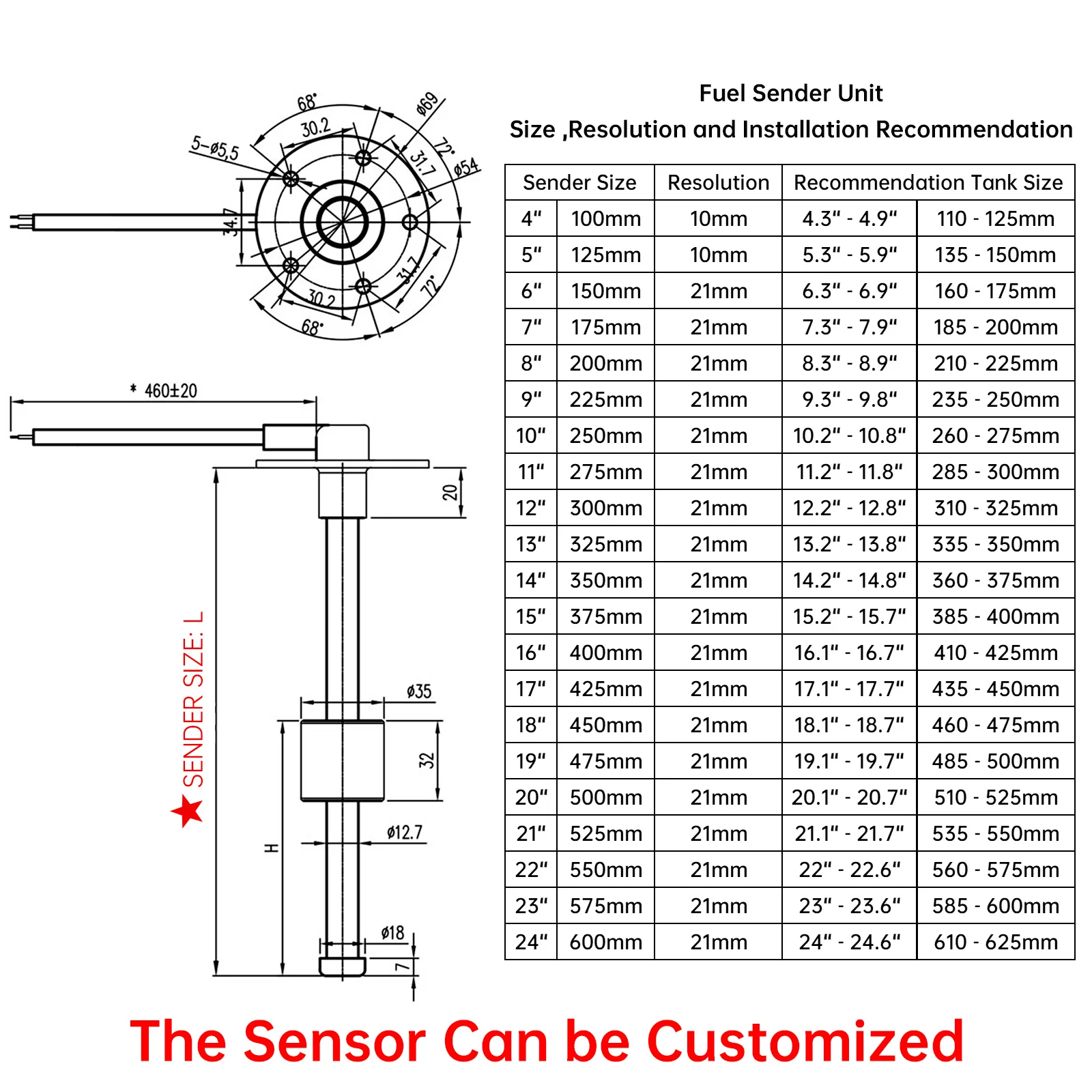

– Sensor Length :100mm-500mm

– Mounting: 5 pieces of M5 screws and 2 mm thick gasket

– Output signal: 0~190 ohm (Standard European),

Can be customized:

– Sensor Length:

100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm, 600mm, 650mm, and so on

– Output signal:

0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on

– The length and output signal of the sensor can be customized, if you need other sizes or output signal, please contact us at any time, we can customize any size for you~~

Attention:

– Empty oil level : 0 ohm

– Full oil level : 190 ohm

– When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~

– When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~

Package:

1 x Sensor

1 x Gasket

5 x Screws
