B10-AL Fuel Tank Filter Assembly 496 Replacement Gasoline Diesel Water Separator 30 Micron Max 25 Gpm 150 Psi 1” NPT Top Cap
Specification
You can choose by yourself:
1x Fuel Tank Filter Assembly + 1 Wrench + 1 adhesive tape
1x Fuel Tank Filter Assembly + 1 pc filter elements + 1 Wrench + 1 adhesive tape
1x Fuel Tank Filter Assembly + 2 pcs filter elements + 1 Wrench + 1 adhesive tape
1x Fuel Tank Filter Assembly + 3 pcs filter elements + 1 Wrench + 1 adhesive tape
1x Fuel Tank Filter Assembly + 1 adhesive tape
10 x fuel filter
1. Fits common fuels such as unleaded gas, diesel, fuel oil, up to 20% biodiesel and related additives.

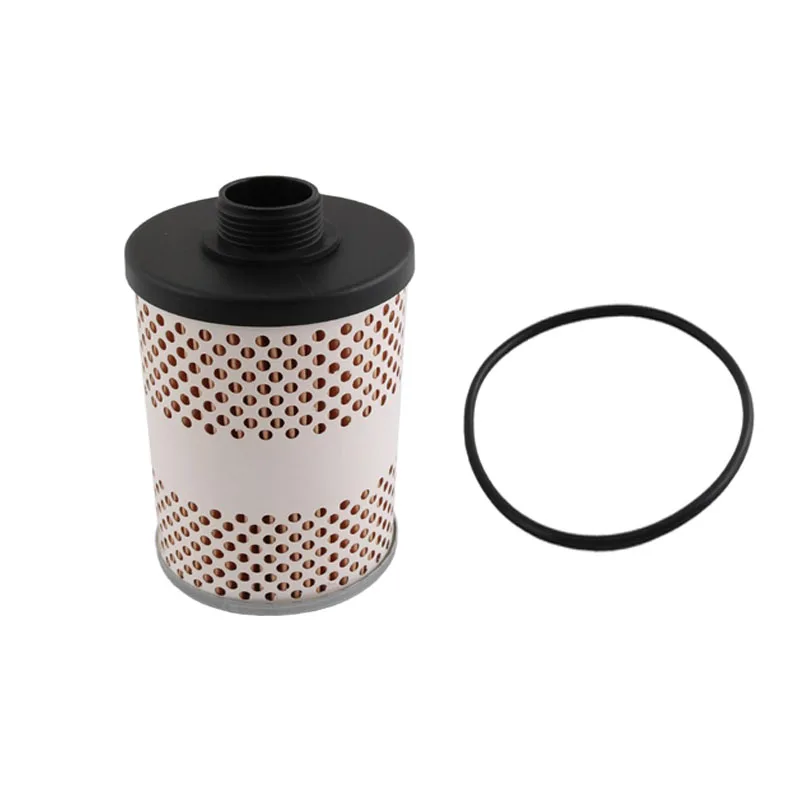

2. Keeping a clean 496-5 filter in your vehicle can reduce damage done to your engine and other fuel delivery components. 30 microns, provide high flow rates and superior filtration efficiency, protect fuels from particles such as rust, sand, dirt and water.
3. With protective sheet to prevent the filter element from being destroyed or deformed by pressure.

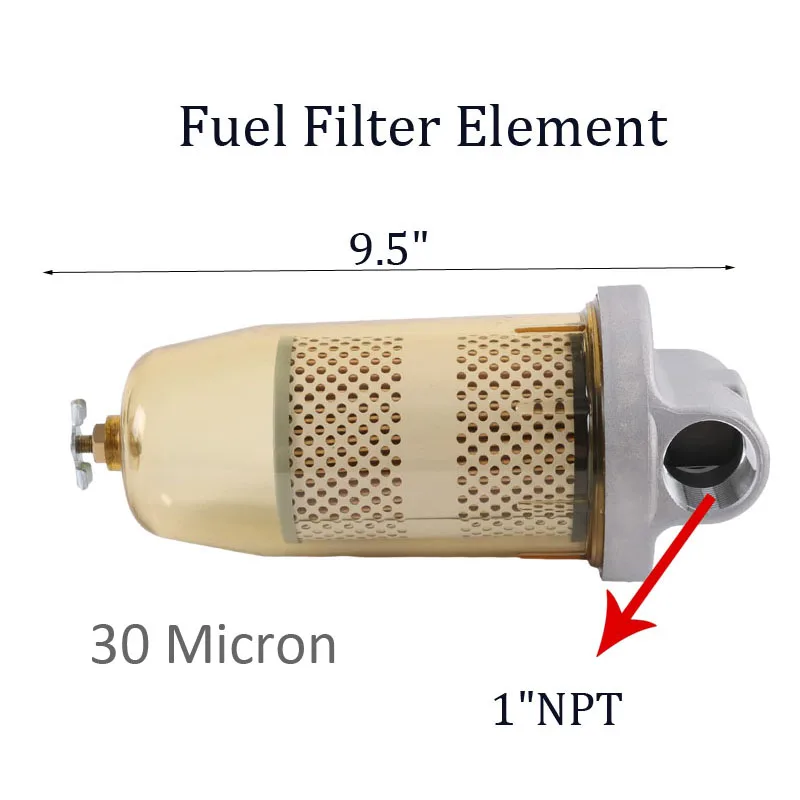

4. With 1″ NPT pipe fittings inlet and outlet marked at the top of the cap.

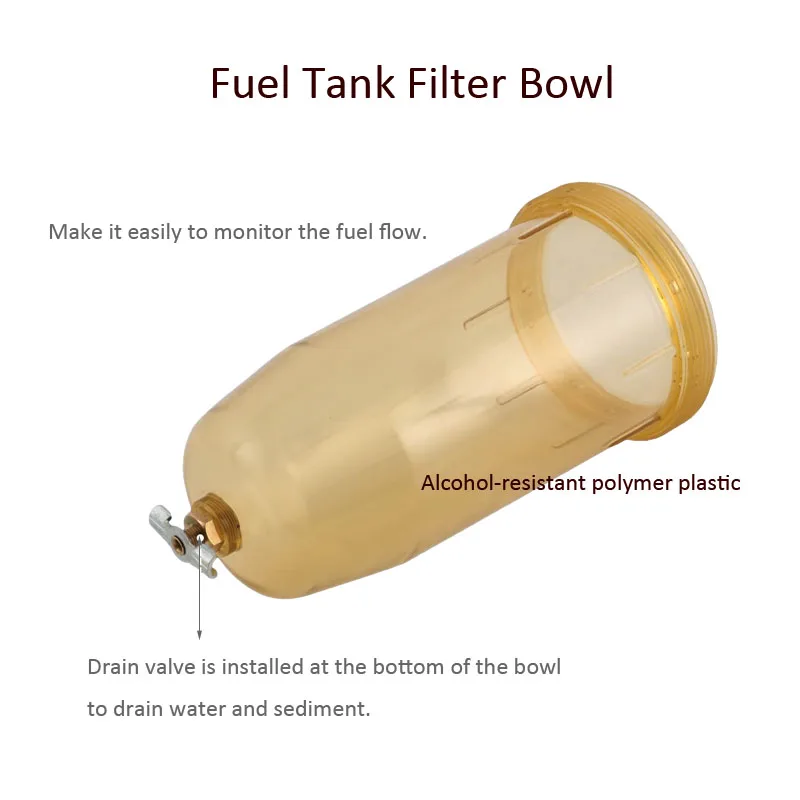

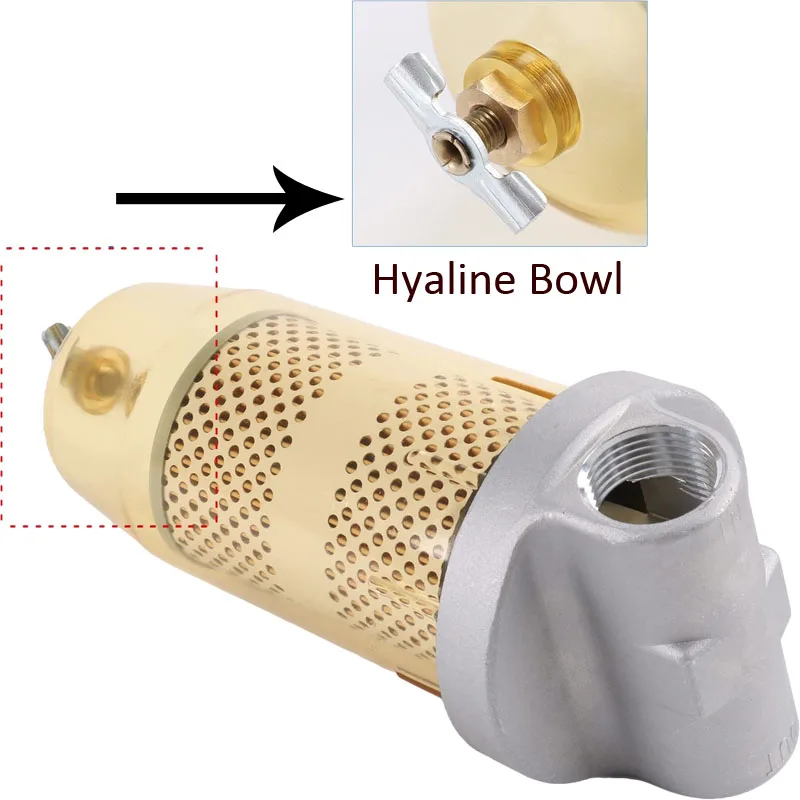

5.Use 495-4 fuel tank filter bowl, makes it easy to visual monitor the fuel flow, the fuel flow will slow down when you need to replace the element. Drain valve installed at the bottom to drain water.
6. Additional matching wrench and tape for easy installation and replacement. Flow rate max 25 gpm. Working pressure up to 150 psi. Gravity flow rate is approximately 5 gpm.
Installation

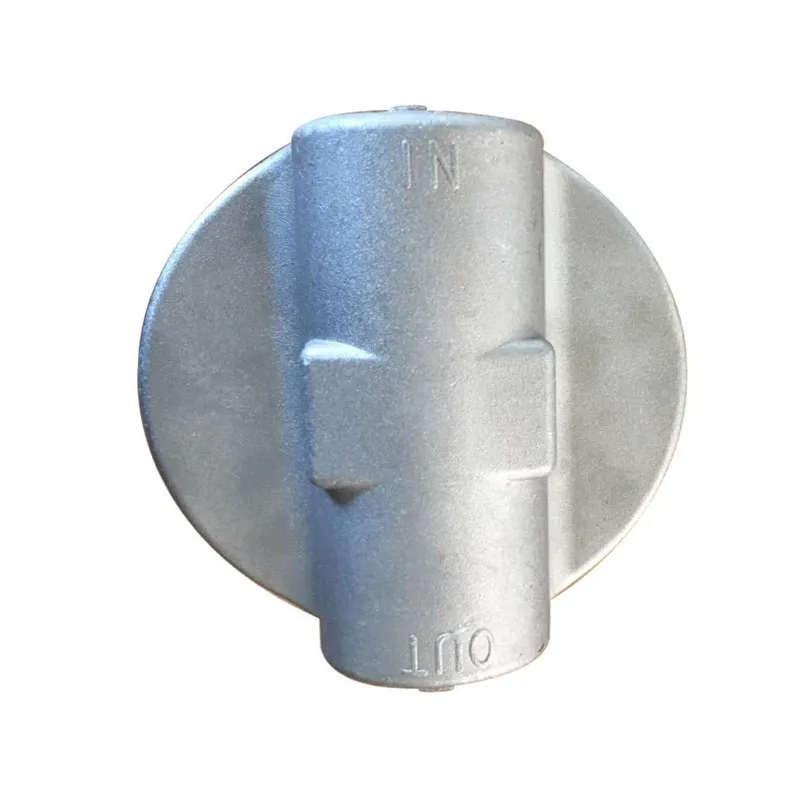

Attach filter top cap to storage tank valve on opening marked “IN”
Attach hose and nozzle to filter opening marked “OUT”
When installing the element and bowl, apply a coating of oil to each side of gasket
These components should be hand tightened only.
Over tightening of the filter bowl will result in difficulty in removal at a later date
When assembly is complete, check for leaks.
Package Include

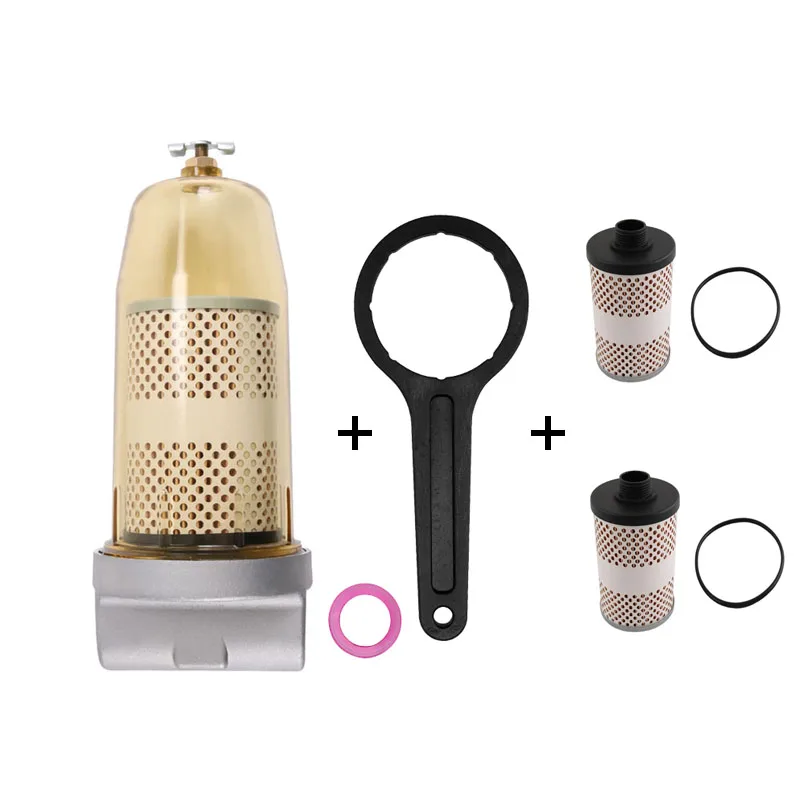

1x Fuel Tank Filter Assembly with 2 pcs filter element + 1 Wrench + 1 adhesive tape
If you need more pcs, please contact us directly. Our factory has the capacity to produce a huge numbers. Thanks a lot.
