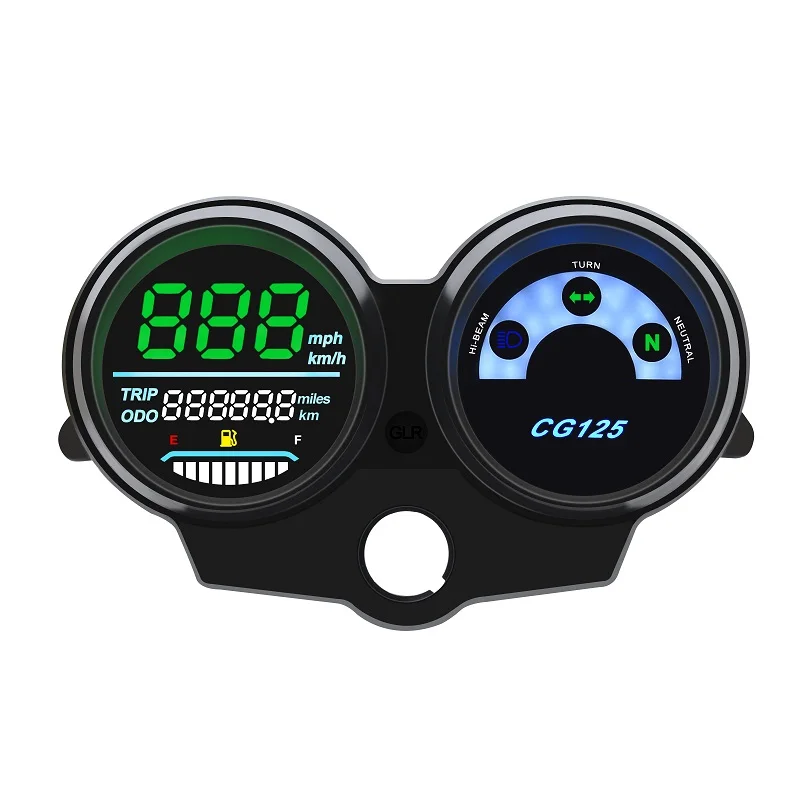

LED Digital Meter Motorcycle Speedometer For CG125 Year 2000 to 2008 Fan 125 Titan 125 2013 Dashboad Digital Panel
A:
Description:

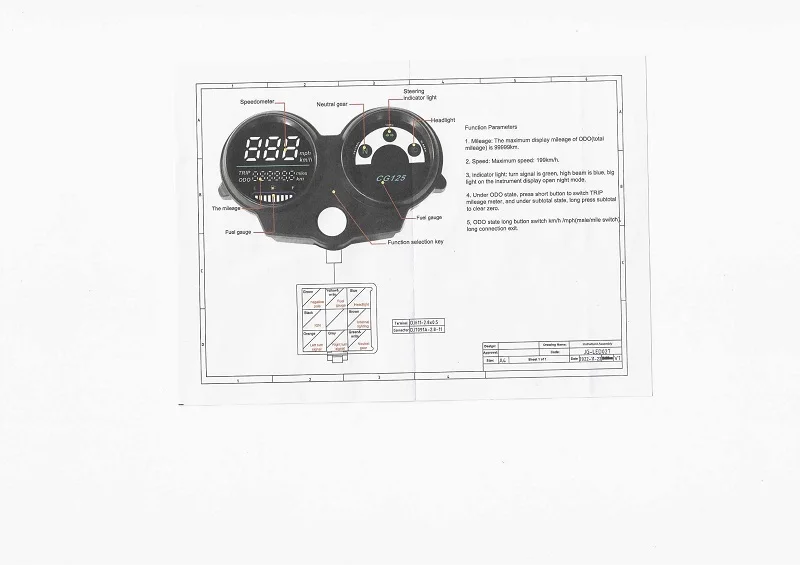

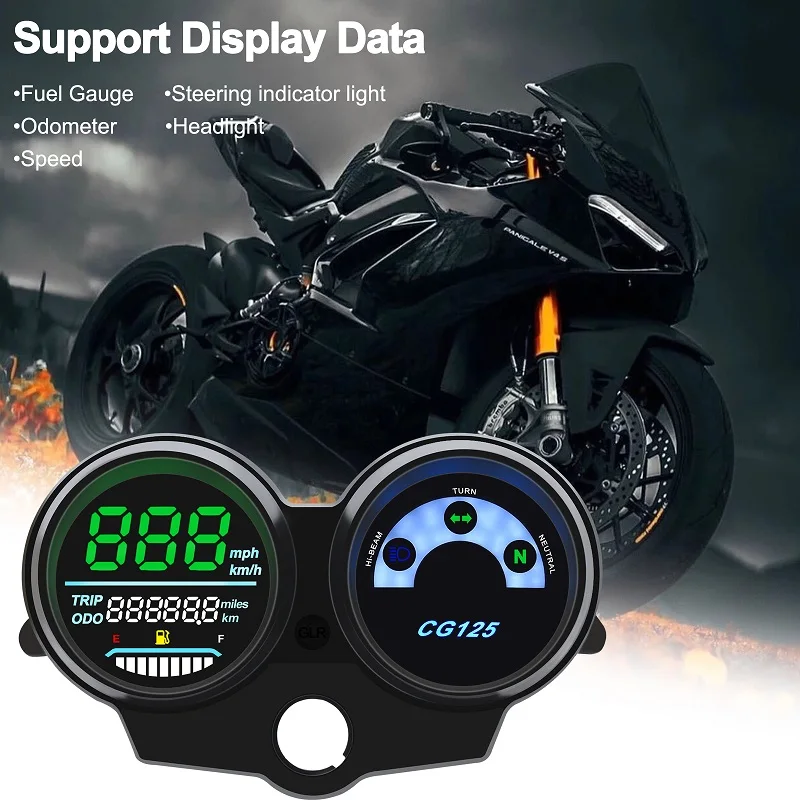

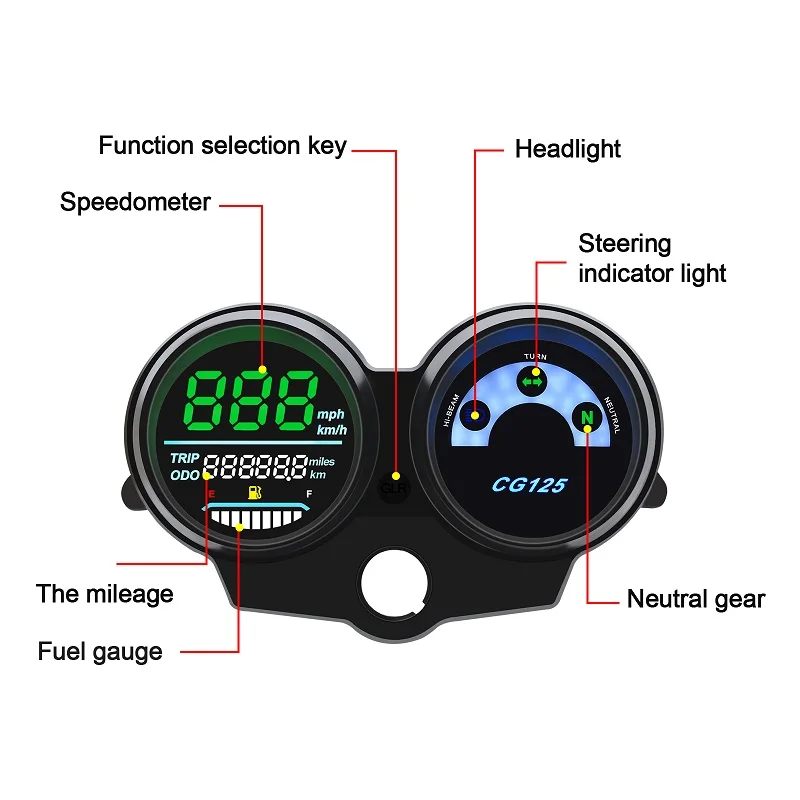

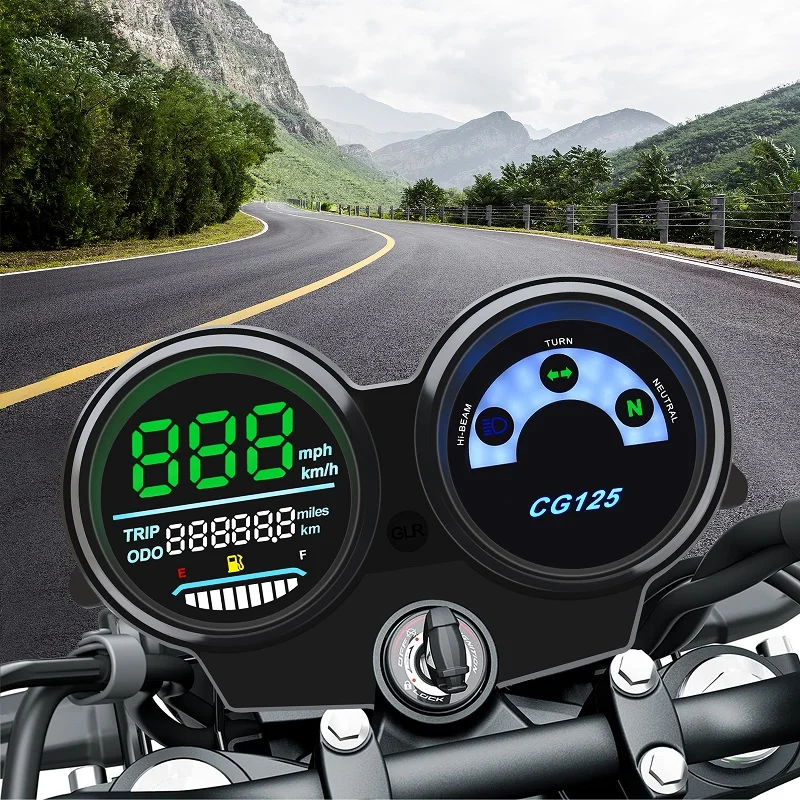

Fitment: For honda cg125 fan125 titan125 Motorcycle LED Digital Dashboard.
Mileage: The maximum display mileage of ODO(total mileage) is 99999km.
Speed: Maximum speed: 199km/h.
Indicator light: turn signal is green, high beam is blue, big light on the instrument display open night mode.
Use: Under ODO state, press short button to switch TRIP mileage meter, and under subtotal state, long press subtotal to clear zero. ODO state long button switch km/h /mph(male/mile switch), long connection exit.
Specification:
Material: ABS pc
Size Chart:

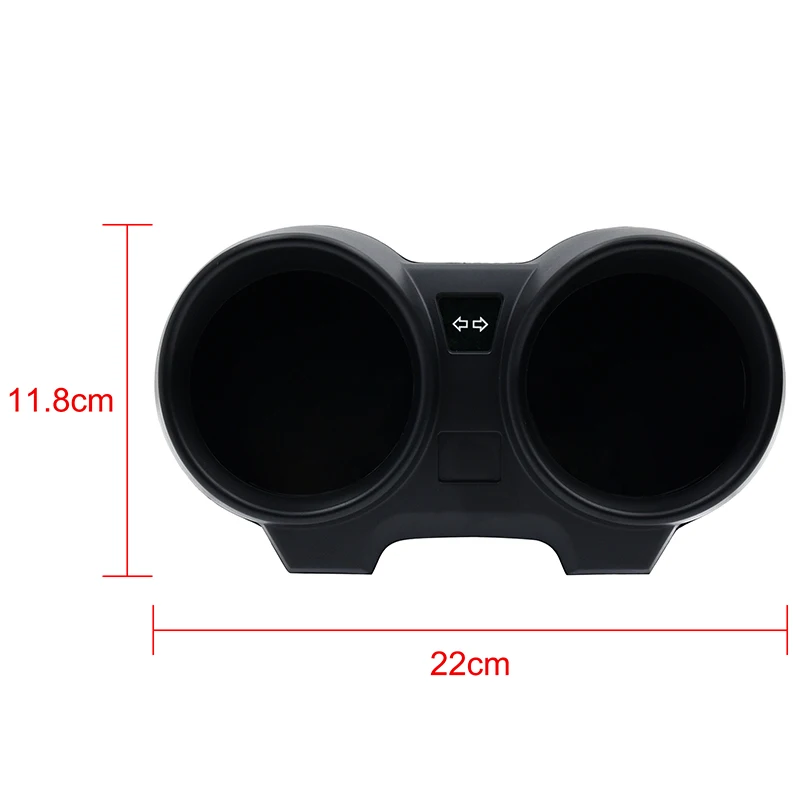

22cmx11.8cm/8.66inchx4.65inch
Package Includes:
1 piece Digital Dashboard
B:
Description:

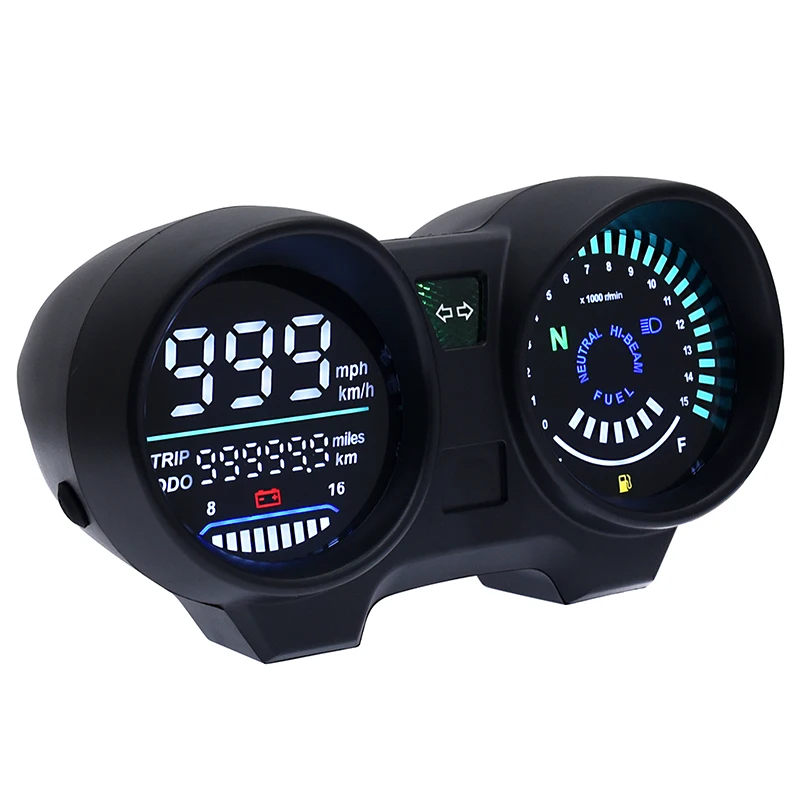

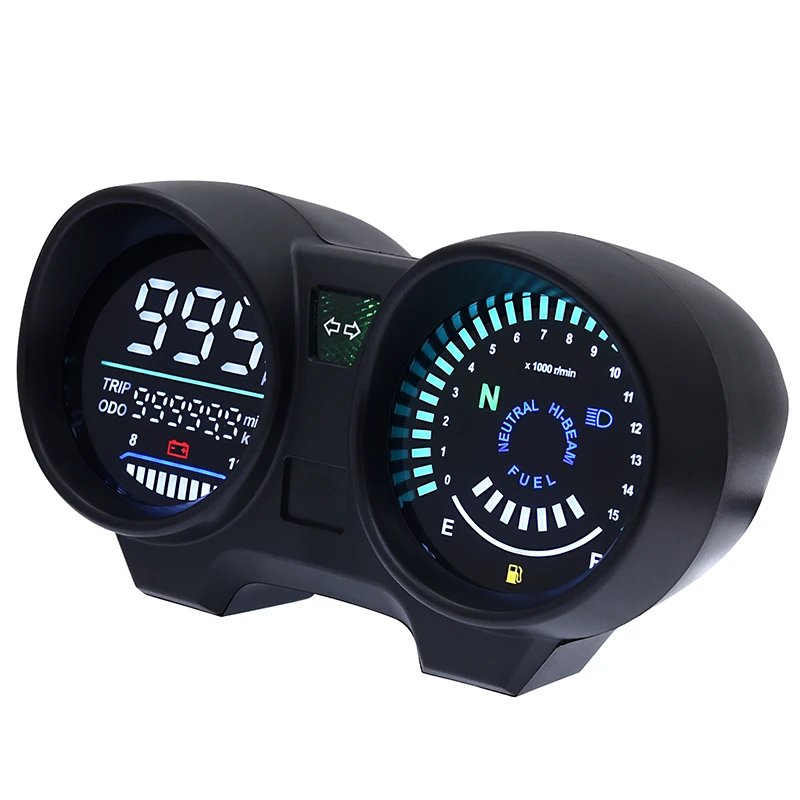

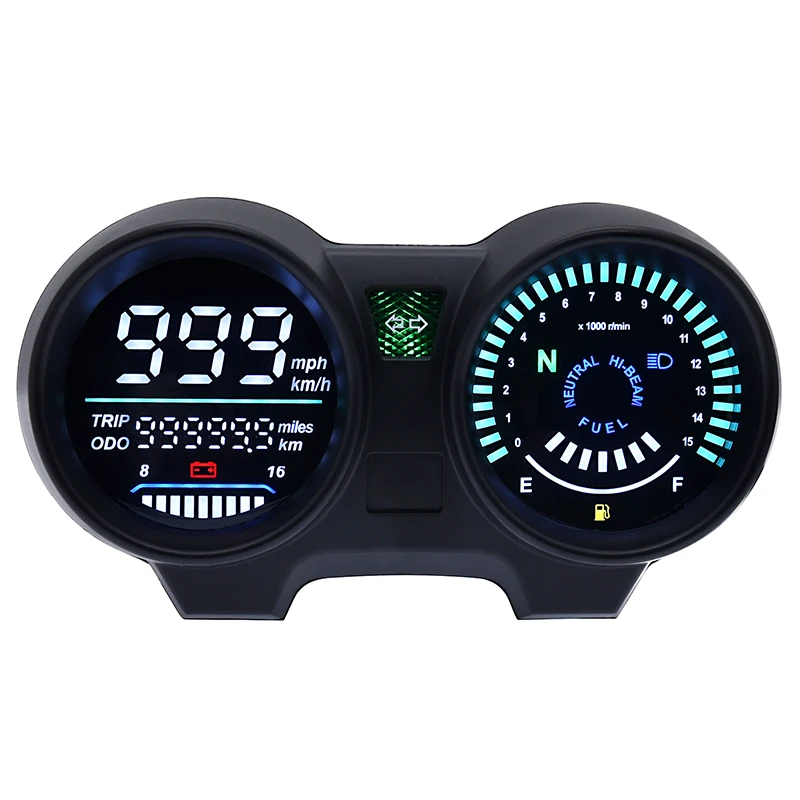

Fitment: For Brazil TITAN150 CG150 Fan150 Motorcycle LED Digital Dashboard.
Digital Dashboard:,, tachometer all in one, LED digital display, easy to check in darkness, clearly obtain information.
Mileage: ODO (total mileage) maximum display mileage is 99999km, TRIP (subtotal mileage) maximum display mileage is 999.9km, which can switched between metric and.
Speedometer: The maximum speed is 199km/h, which can switched between metric and.
Button: Switch between total mileage and subtotal mileage, subtotal mileage to zero, setting.
Specification:
Product Size: 22cmx11.8cm/8.66inchx4.65inch
Material: ABS.

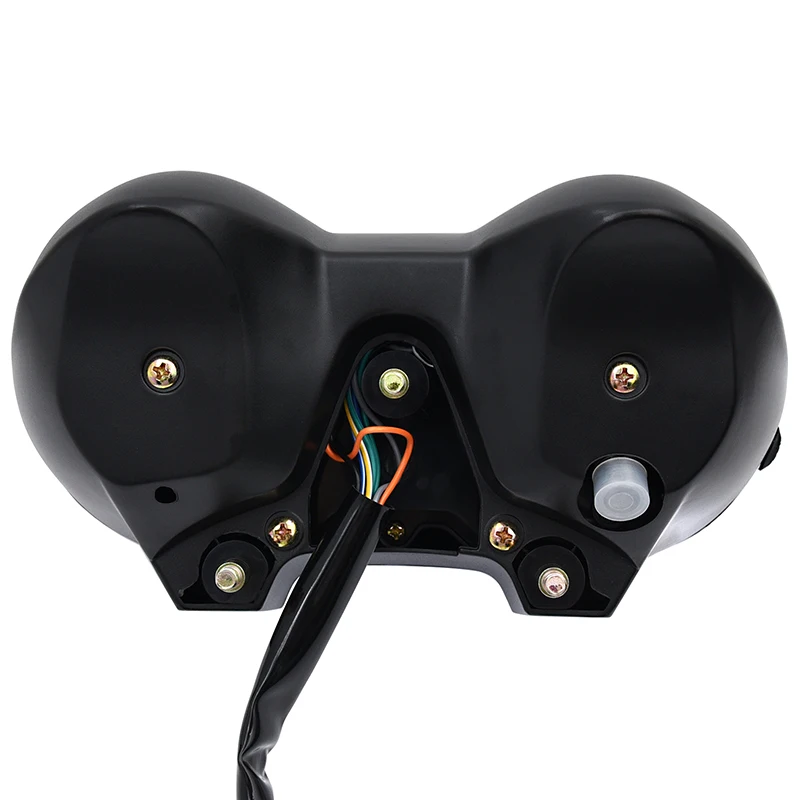

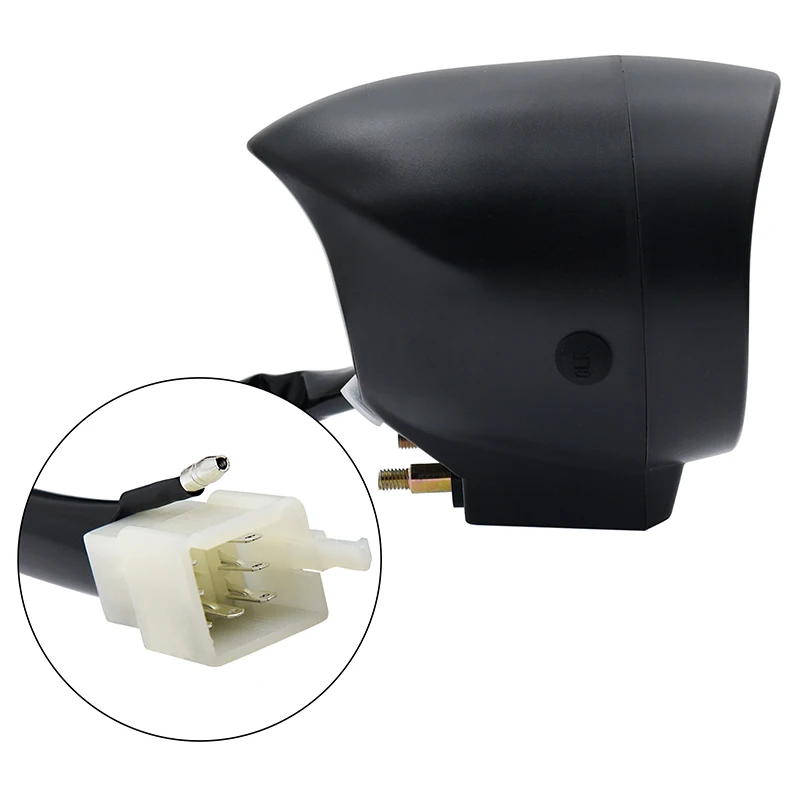

Line Description:
Green: Negative Pole
Black: Positive Pole
Orange: Turn Lamp
Yellow White: Oil Level
Gray: Turn Lamp
Blue: high Lamp
Green White: Neutral
Blue White Round Head Wire: Engine Speed
Package Includes:
1 Dashboard
Note:
Please allow slightly errors due to manual measurement and different monitors.
Sometimes there may be high-frequency wireless interference. This phenomenon is caused by the lack of a shielding cap on the high-voltage package. It is recommended that you add a (metal) shielding cap to the high-voltage package after receiving the product. The high-voltage package is a low-cost one. You can replace it with a damped high-voltage package with a metal shielding cap.
C:

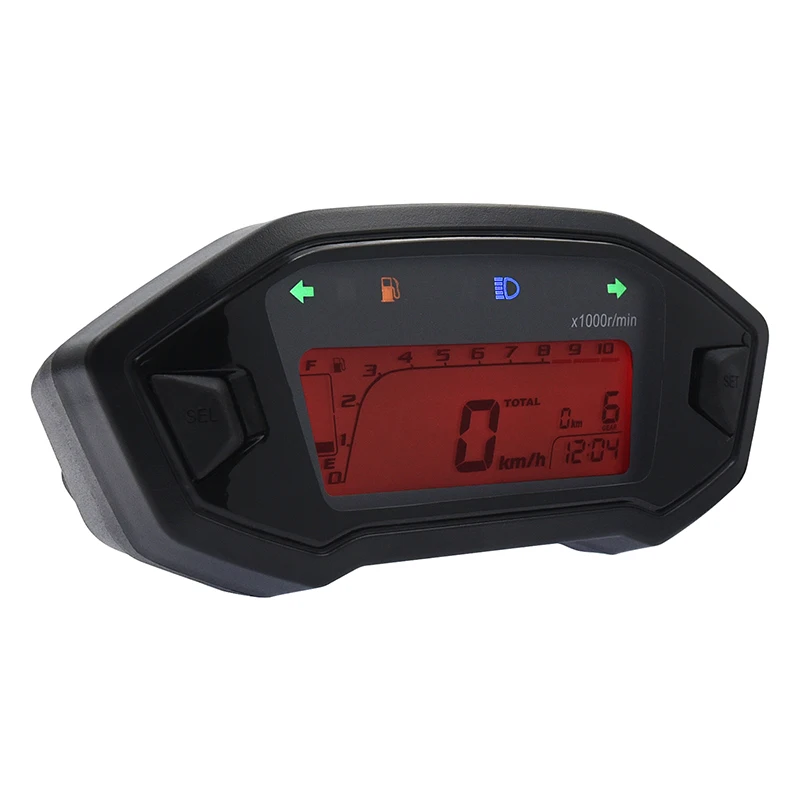

Discription:

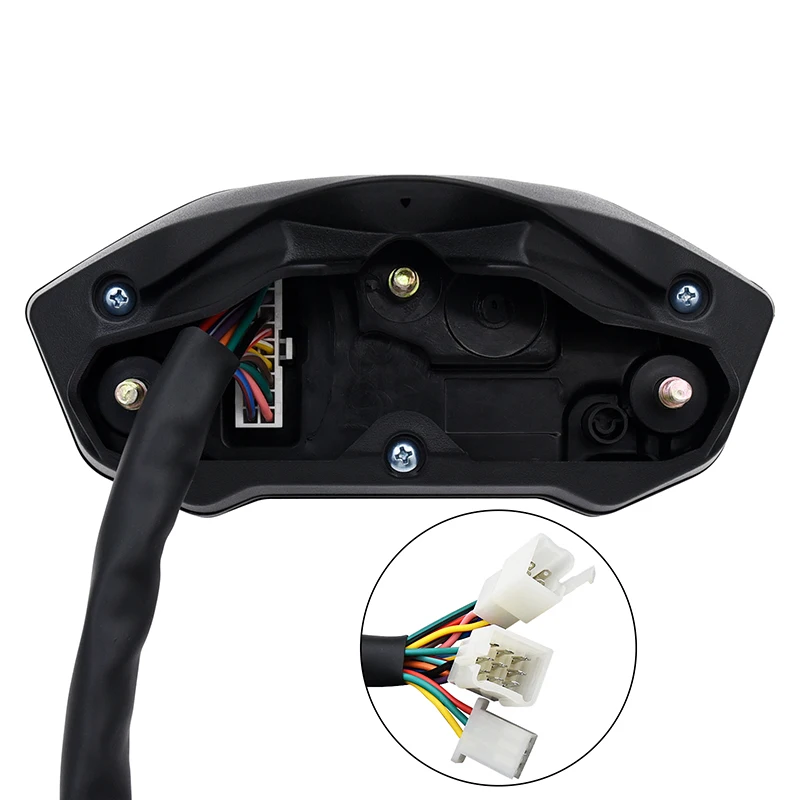

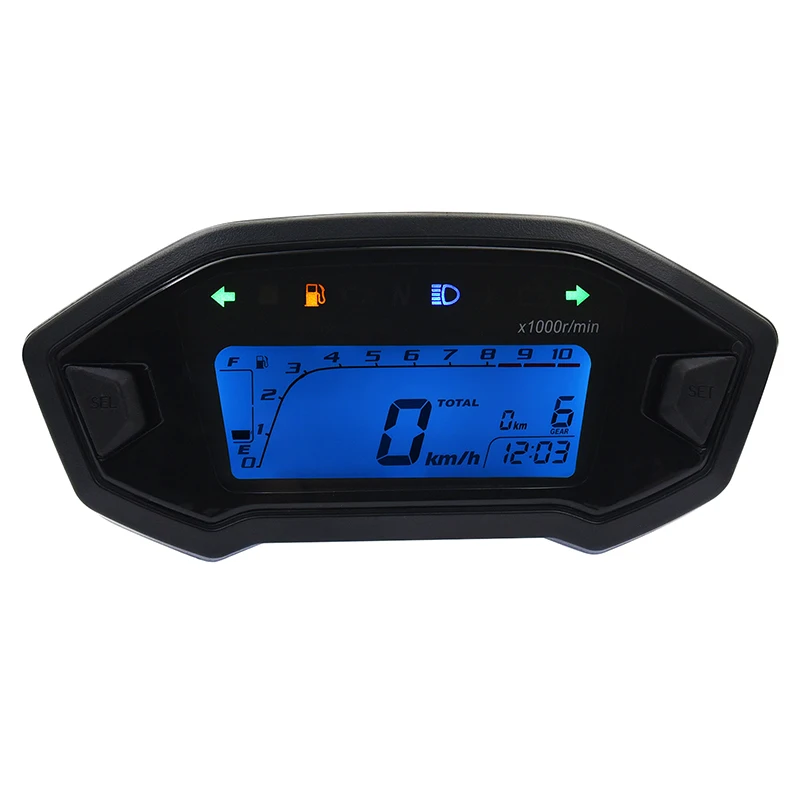

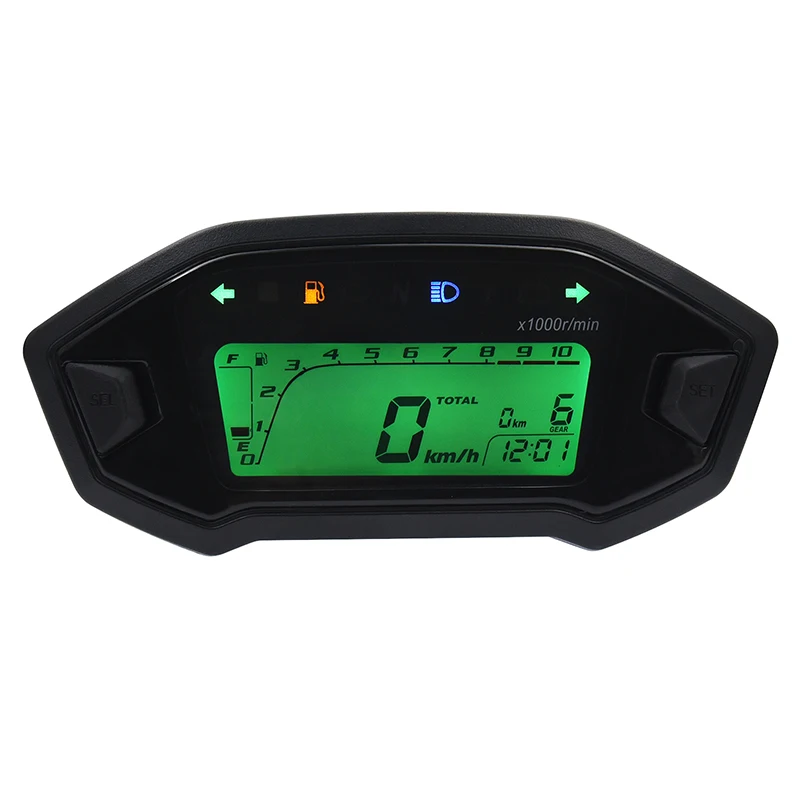

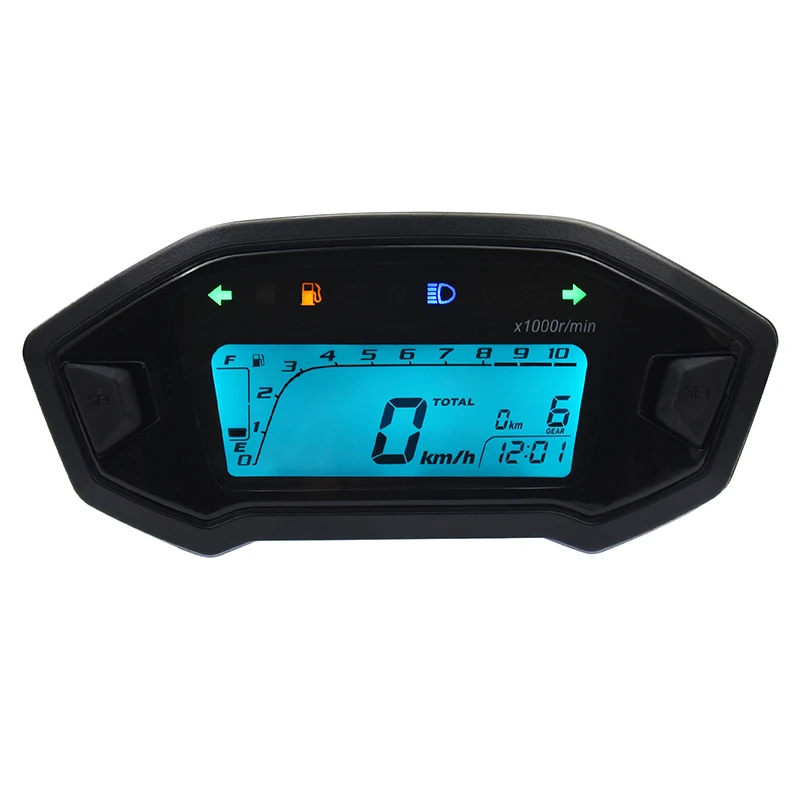

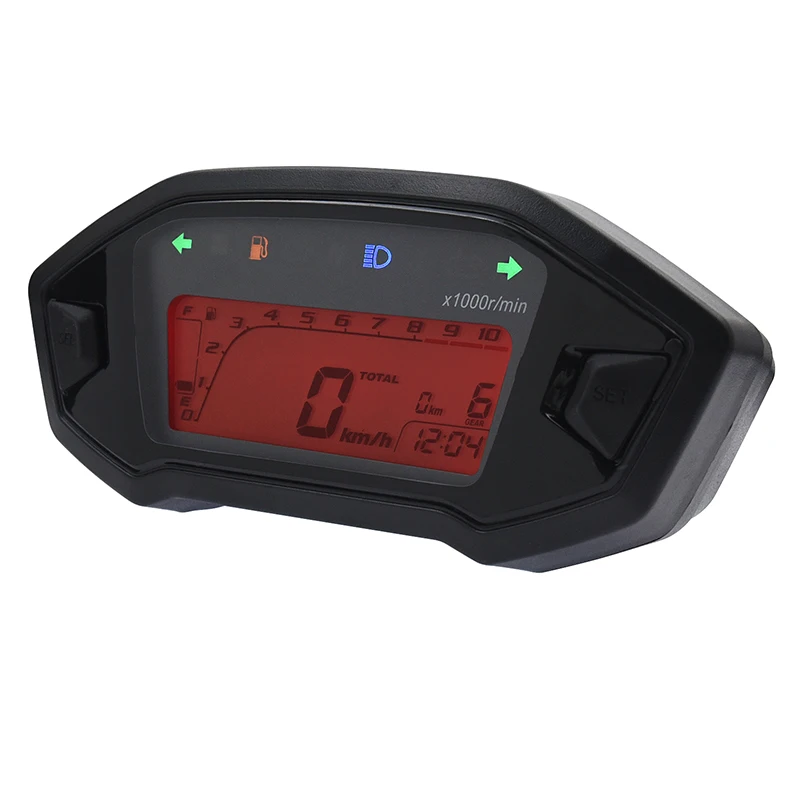

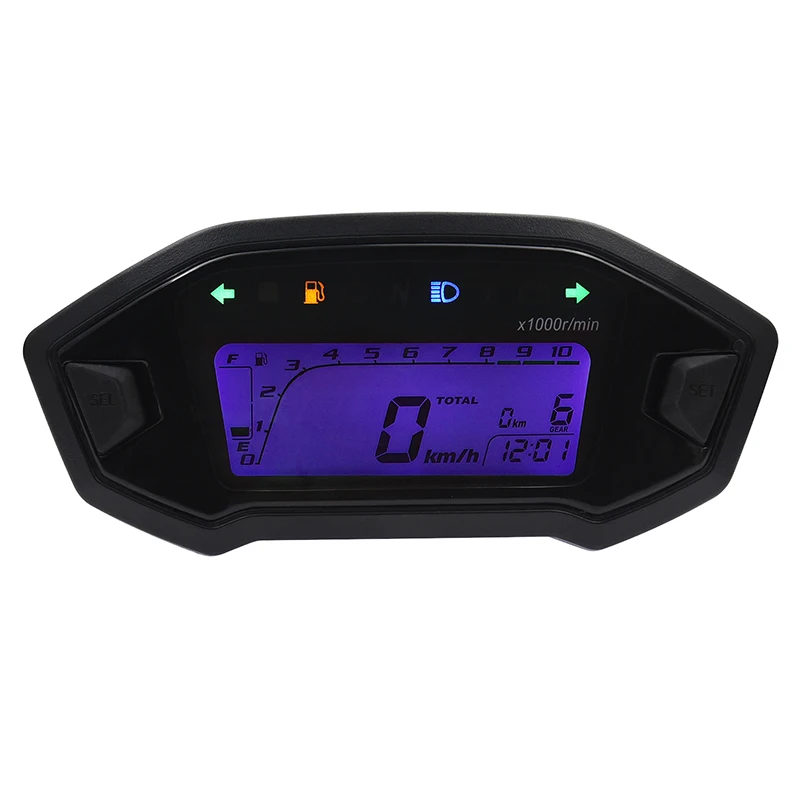

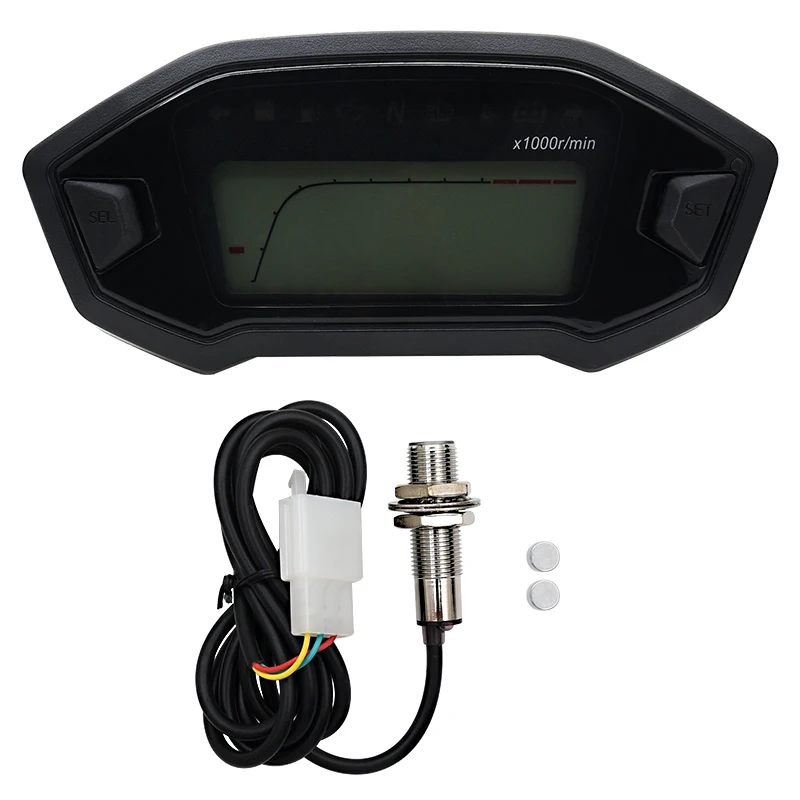

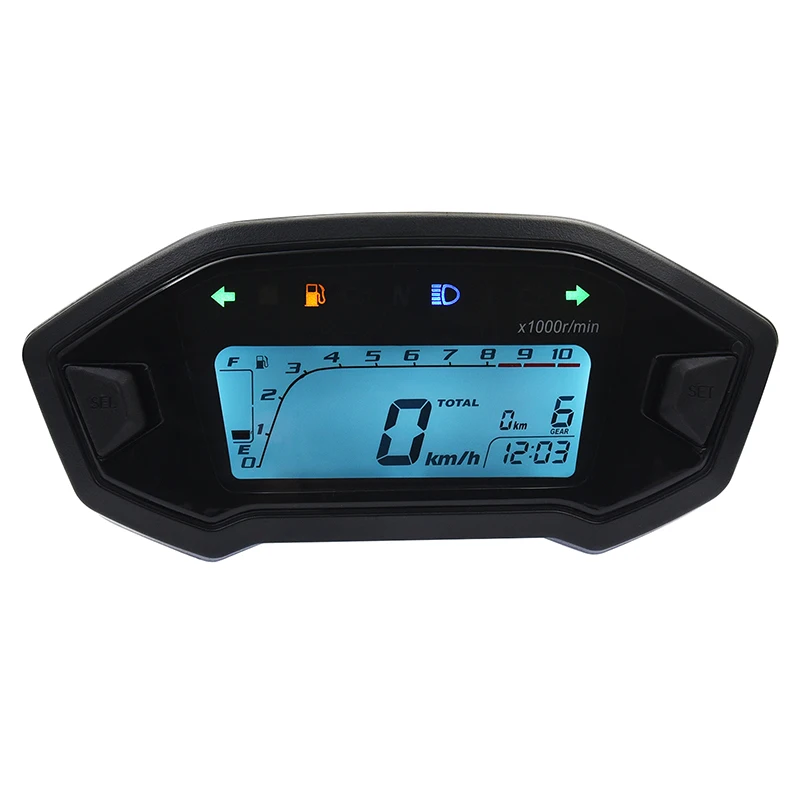

Fit for:single-cylinder, two-cylinder, four-cylinder motorcycle
Set Kmh to mph , Mph to Kmh freely,Support 1-5 Gear and N Gear
Multi-function: Tachometer, odometer, fuel level, clock
Particular Attention– RPM does not compatible with Electric fule Injection (EFI) engine, if your motorbike is Electric fule Injection (EFI) engine, RPM function would not work properly, other functions run well
Size: Approx. 190*80*100mm/7.48×3.15*3.94”
Package Includes:
1 Piece Multi-Function LCD Speedometer Gauge
