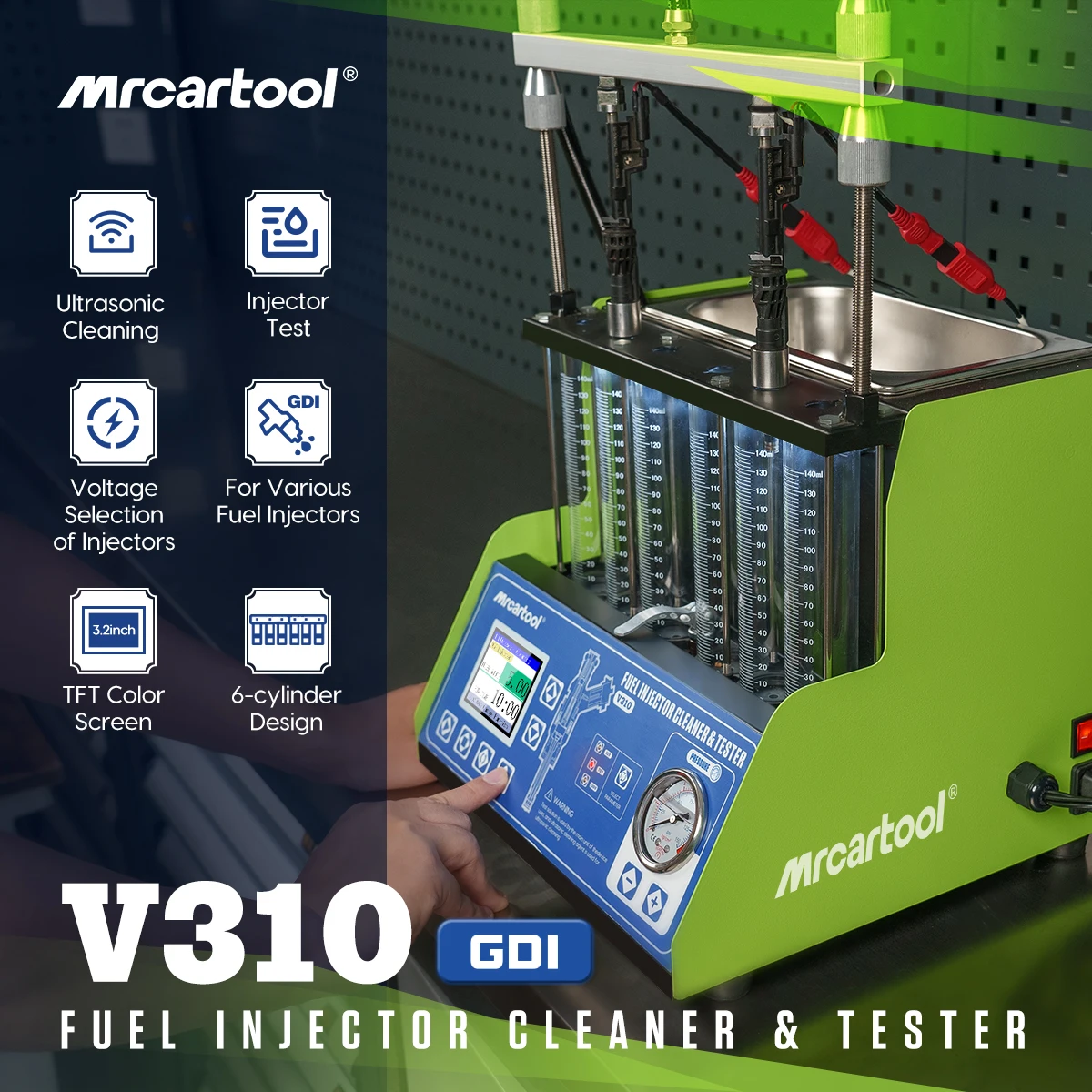

MRCARTOOL V310 Introduction:
MRCARTOOL V310 GDI Fuel injector diagnostic and cleaning equipment is a mechatronics product that combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and detection technology. This product simulates various operating conditions of the engine, and cleans and inspects the fuel injectors of various automobiles and motorcycles. This equipment is the necessary and preferred equipment for the automobile and motorcycle repair and maintenance industry, research and teaching and training departments.
MAIN FUNCTIONS:
1.Ultrasonic Cleaning
2.Idle Speed Test
3.Medium Speed Test
4.High Speed Test
5.Accelerating Test
6.Variable Speed Test
7.Leakage Test
8.Idle Speed Spray Volume Test
9.Medium Speed Spray Volume Test
10.High Speed Spray Volume Test
Notice:
The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol.Its working voltage range is 110-230V. V310 Car Fuel Injector Tester Cleaner versions: English & Spanish.（If you would like to customize the language version,you can contact customer service before placing the order, Minimum order quantity: 10pcs,support customized language versions）
MRCARTOOL V310 Specifications:
Technical Parameters:
Tank Capacity: 2000ml
Range Of Rotation: 0-7500r/min
PWM Pulse Width: 0～20.0ms step0.1ms
Time: 0～20min
Cleaning Frequency: 40 kHz
Cylinder Volume: 180ml
Injection Times: 0～9900 times, step 100ms
System Pressure: 0～0.6Mpa
Ultrasonic Cleaning Power: 70W
Package Dimensions: 340*295*360mm
Working Environment Parameters:
Power Supply: AC 110/220V±10%
Frequency: 50HZ±0.5
Relative Humidity:<85%
Environment Temperature:0℃～＋40℃
External Magnetic Field Strength: <400A/m
No Open Flames Are Allowed: Around
Why choose GDI injector cleaning machine?
Compared with traditional injector cleaning machine, the newest upgraded V310 injector cleaner tester supports high-pressure DGI Injectors and Standard Injectors cleaning & testing with 12V/70V/120V voltages optional, more powerful and practical.
As we all know, GDI fuel injectors can make a complete fuel burn via mist injection, fully-utilized and energy-efficient, good to maintain the system.
MR CARTOOL V310 GDI Fuel Injector Cleaner & Tester Machine Features:
[For GDI Injector Cleaning&Test]: MRCARTOOL V310 can clean and test not only standard injectors but also GDI injectors, such as for Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines.
[Multi Voltage Selection]: MRCARTOOL V310 GDI Fuel Injector 6-cylinder Cleaner and Tester designs with various types of voltage output (12V, 70V & 120V) to be selected to adapt for different types of injector testing.
[Upgrade Ultrasonic Cleaning]: Different from other cleaner& tester machines, MRCARTOOL V310 comes with a cooling fan and thermal protection, and with a power of 60w, its ultrasonic cleaning capacity is significantly enhanced.
[Various Parts equipped ]: It is equipped with a variety of injector accessories for different needs.
[6-Cylinder & 2 Draining Ports Design]:
MRCARTOOL V310 can test and clean 6 injectors at the same time for better efficiency; it also has both control valves for cleaning solution draining and test liquid recovery. Very easy and convenient to deal with and no worries about leaving a mess.
Ultrasonic Cleaning Principle:
Use the penetrating and cavitation shock waves generated when ultrasonic waves propagate in the medium, and powerfully clean objects with complex shapes, cavities and pores to completely remove stubborn carbon deposits on the fuel injector.
Injector Diagnostic
Support to detect the atomization, dripping, blockage, fuel injection angle status of the fuel injectors and the size and balance of the fuel injection of each fuel injector at different speeds.
MRCARTOOL V310 Design Introduction：
Run Time: 0~10 min
Equipped with 3.2-inch color screen display, easy to check the working status. Besides,the test time, working frequency, fuel injection times, shortest switching period, etc. of the fuel injector can be adjusted according to your needs.
Tank Capacity: 2000ml
Large capacity design, support to clean six fuel injectors at the same time, greatly improve work efficiency and save your time.
Cylinder Volume: 140ml
Bright background light design, clear to observe a bad or good situation of the fuel injectors in real time.
DETAIL DESIGN:
Pressure Gauge: Used to observe the injector pressure in the real time.
Test Liquip Tube: Used to observe the test liquid level easily.
Drain Valve: Used to recycle the cleaning fluid, convenient and pratiical.
Automatic & Smart Setting:
The fuel pressure, working time and pulse width are automatically set by the system. The time system defaults to 10s as a cycle period, no need to set it personerly.
The system will automatically and continuously cycle three times to simulate the working condition and fuel injection volume of the fuel injector when the engine is accelerating uniformly at 750 to 7500 rpm.
Structural description：
1 Lock pole;
2 Lock nut;
3 Oil rail;
4 Top oil inlet connector;
5 Glass measuring cylinder;
6 Oil drain handle;
7 Operation panel;
8 Pressure gauge;
9 Oil outlet pipe;
10 Ultrasonic cleaning tank;
11 Signal wire;
12 Power switch;
13 Power socket;
14 Cleaning agent drain valve;
15 Testing agent liquid level
Packaging List:
1 x GDI Injector Cleaner, Tester
1 x Special nozzle path
1 x Ultrasonic cleaning bracket
1 x Filling hopper
1 x Exhaust valve
1 x User manual with after-sales card
1 x Power cord
1 x Ultrasonic bath cover
1 x Oil rail
42 x Adapter (6 x 11mm; 6 x 12mm; 6 x 12.5mm; 6 x 13mm; 6 x 14mm; 6 x 15mm; 6 x 16mm)
6 x (nozzlepads; cone adapter f10.5-13.6f; special adapters compatible for BMW; adapter cable)
4 x (Fixed bolts for oil rail; Fixed nuts for oil rail)
5 x Plug for oil rail
