Things buyers must know:
1. The equipment must be connected to the correct power source. The acceptable voltage range of this system is 8-20V. If the voltage is too high or too low, the system will not work properly.
2. This system is universal and can be installed in almost any 12V car, but it cannot work with the original push button start system of the car itself, or the central door lock with double pulse unlocking, or the pneumatic door lock.
3.The models with mobile APP in the picture all have Bluetooth. These models can use the APP to remotely control the car to lock/unlock/open the trunk/start the engine.
4. Installing this system requires some professional automotive electronics knowledge. Please read the product manual carefully. Please pay attention to output signal cables must be connected to the correct signal according to the “+” or “-” on the product manual. Wrong connections may cause short circuits or burnout of the product.
5. All products have been strictly inspected before leaving the factory to ensure that they are complete and working properly. If you have any problems after receiving the product, please contact us immediately. We will give you the best solution. Good communication is very necessary , we reject all disputes opened without communication.
6. The product manual is not only in English, we also have Russian, Portuguese, Spanish, etc., You can check the different languages by scanning the QR code in the product manual.

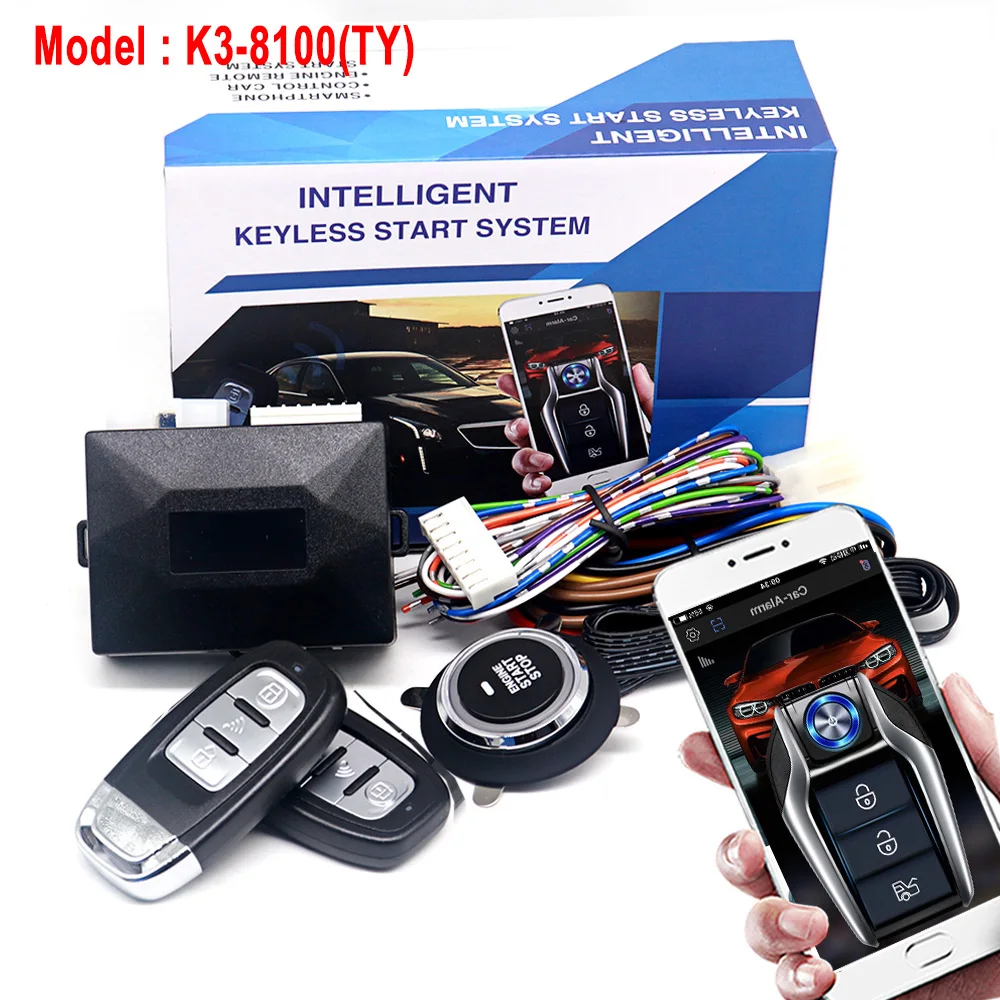

Model K3-8100
Features:
1. lock/unlock/remote start by remote key or APP.
2. Car original remote control remote start.
3. Push one button start / stop engine.
4. Compatible with car’s original anti-theft system.
5. Engine lock (can’t start the engine with a button after the module is locked).
6. Automatically lock door while driving, automatically unlock door when the engine is turned off.
7. Remot open back box by key or APP (Requires the car itself to have a controllable circuit).
8. Select petrol mode/diesel mode by switch (Warm up at starting).
Packing List:
1* ignition control module
2* Install wiring harness
2* Remote keys
1* Start stop button
1* Product manual

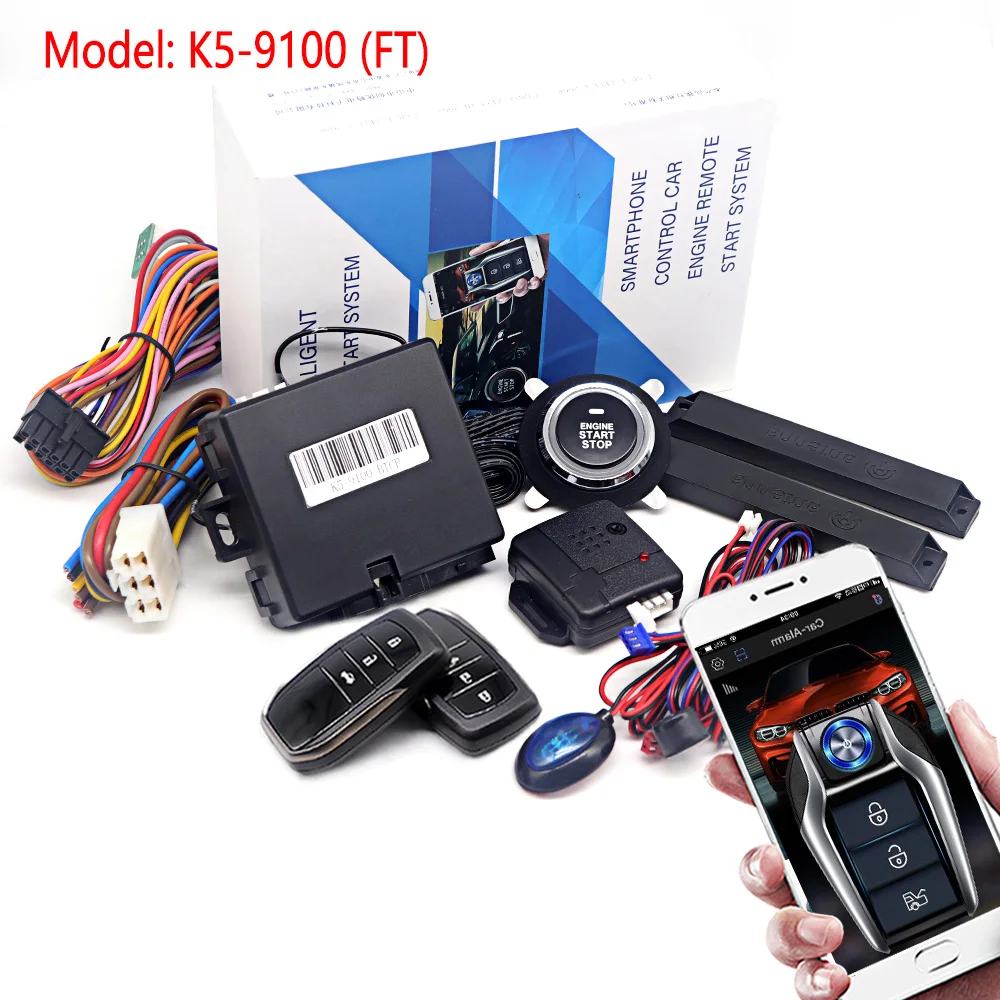

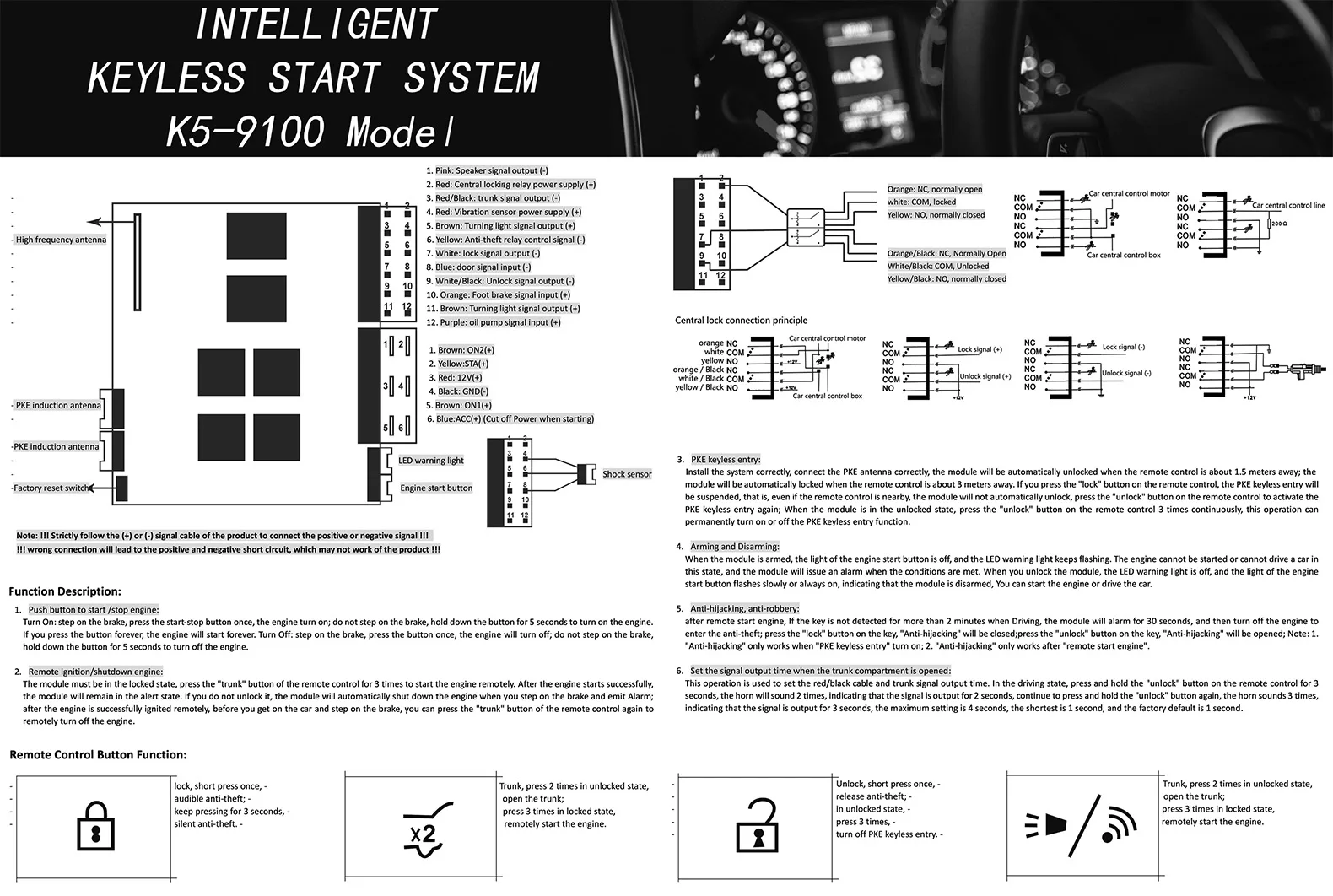

Model K5-9100
Features:
1. lock/unlock/remote start by remote key or APP.
2. RFID identification (If the key is out of Induction range, the engine cannot be started).
3. Push one button start / stop engine.
4. Remot open back box by key or APP (Requires the car itself to have a controllable circuit).
5. Sound and light alarm or silent anti-theft.
6. PKE keyless comfort entry function, automatically unlock the car 1.5-3 meters away from the car, automatically lock the door 3-5 meters away from the car.
7. PKE keyless entry can be temporarily closed.
8. Warm up for 3 seconds at starting (for diesel cars).
9. Automatically lock the door by stepping on the foot brake after starting, and automatically unlock when the flame is turned off
10. Intelligent anti-hijacking (if there is no key after the engine is started, the engine will be automatically shut down after 2 minutes to prevent hijacking).
11. Intelligent anti-hijacking can be temporarily closed.
12. Blue LED Alarm light prompt
13. Collision to alarm.
14. Emergency reset.
15. Anti-theft alarm function (Illegal door opening or hit the brakes to alarm).
16. Anti-theft power off (after the system is locked, the fuel and electricity of the car itself is cut off, even if the key of the car itself is used, the engine cannot be started).
17. Using high-quality relays to output control signals, the system is more stable and reliable.
Packing List:
2* Intelligent remote keys
1* Ignition and alarm module
2* Install wiring harness
1* Start-stop button
2* PKE Induction Antenna
1* Emergency reset button
1* Collision sensor
1* The LED light
1* Product manual

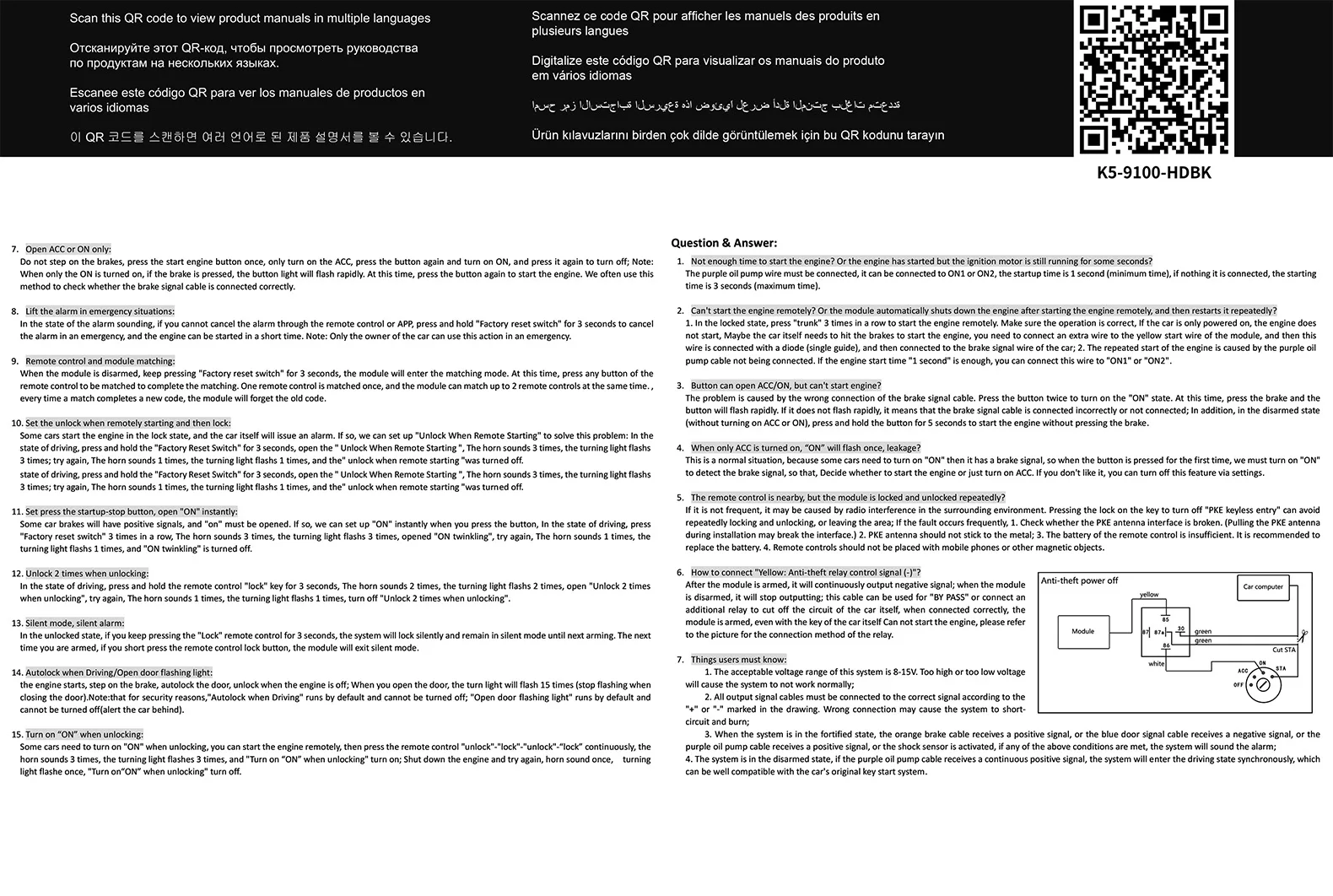

Q&A about installation:

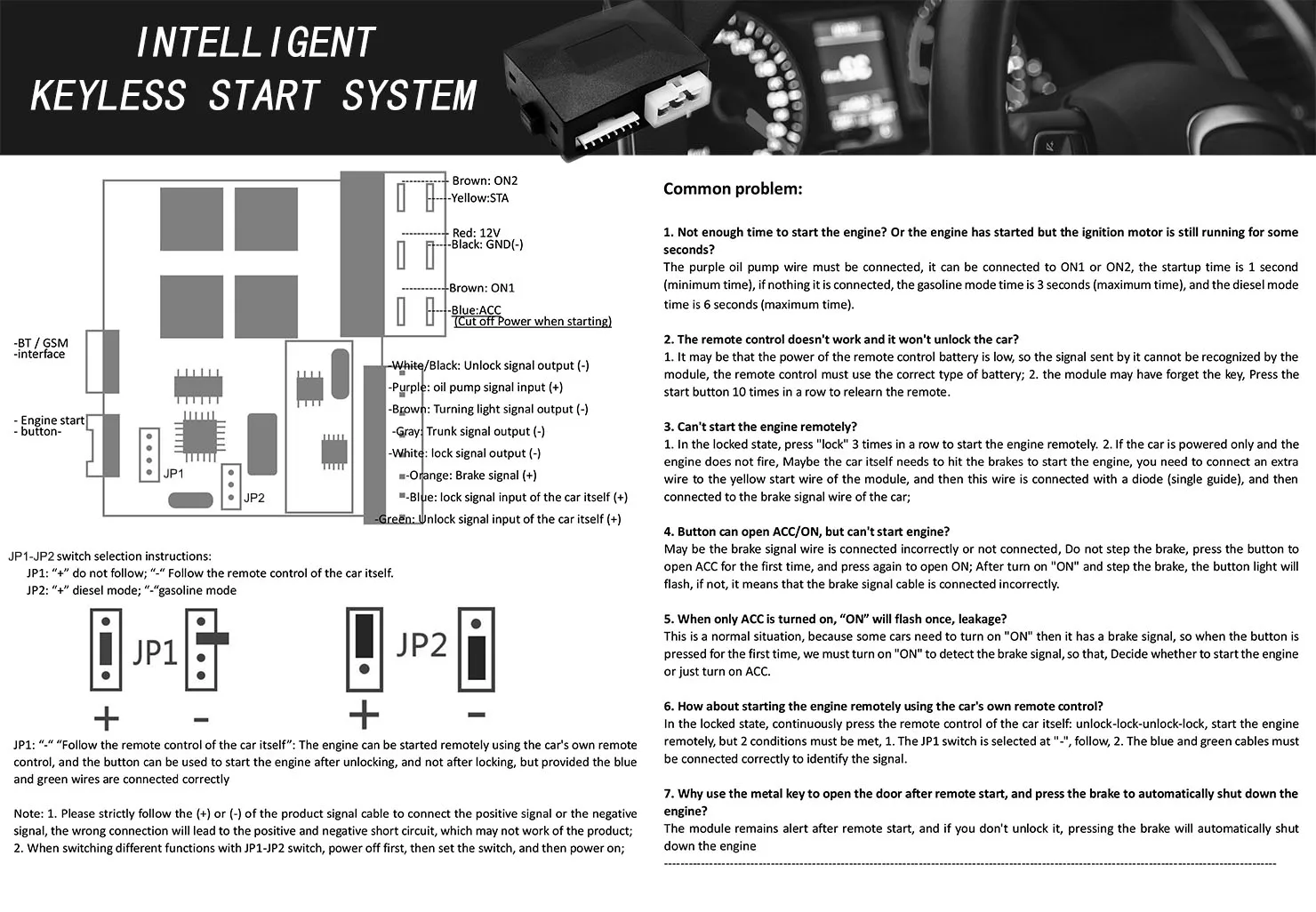

1. Is there any difference between ON1 and ON2? how to choose?
ON1 and ON2 are the same. If the original car has 2 ON, connect ON1 and ON2 respectively, regardless of the order.If there is only one ON in the original car, connect ON1 or ON2.
2. Blue ACC, what does power off at startup mean? How to connect it?
Blue ACC, it will automatically power off when the engine starting. Most of the car’s own ACC will also power off when the engine starting. If your car does not have ACC, there is only 1 or 2 “ON”. If so, we do not need to connect blue ACC; if your car does not have ACC, but has an “ON” engine starting will power off, if so, we can incorporate blue ACC into ON1 and then connect to the car.
3. Can’t start the engine remotely?
In the locked state, press “Lock” or “find” 3 times in a row to start the engine remotely. Make sure the operation is correct, if there is no feedback, the gray handbrake wire, it must be connected correctly, it can be grounded. Maybe the car itself needs to hit the brakes to start the engine, you need to connect an extra wire to the yellow start wire of the module, and then this wire is connected with a diode (single guide), and then connected to the brake signal wire of the car;

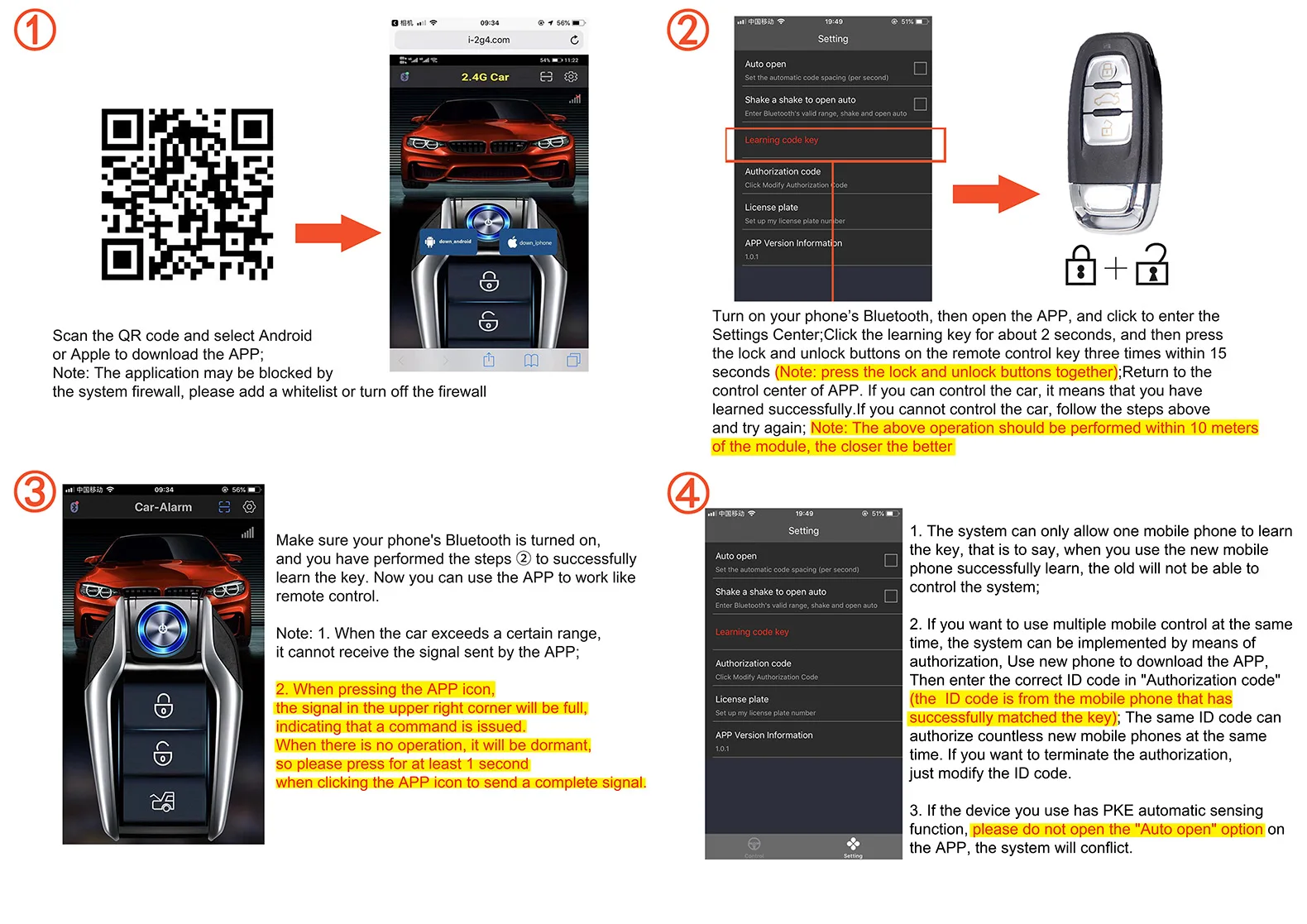

3. How to use the app?
First, scan the code to download the APP, (choose Android or Apple), then turn on the Bluetooth of your mobile phone, click the APP “learning key”, and then press the “lock” and “unlock” of the remote control at the same time, it is easy to complete.
Matters Needing Attention :

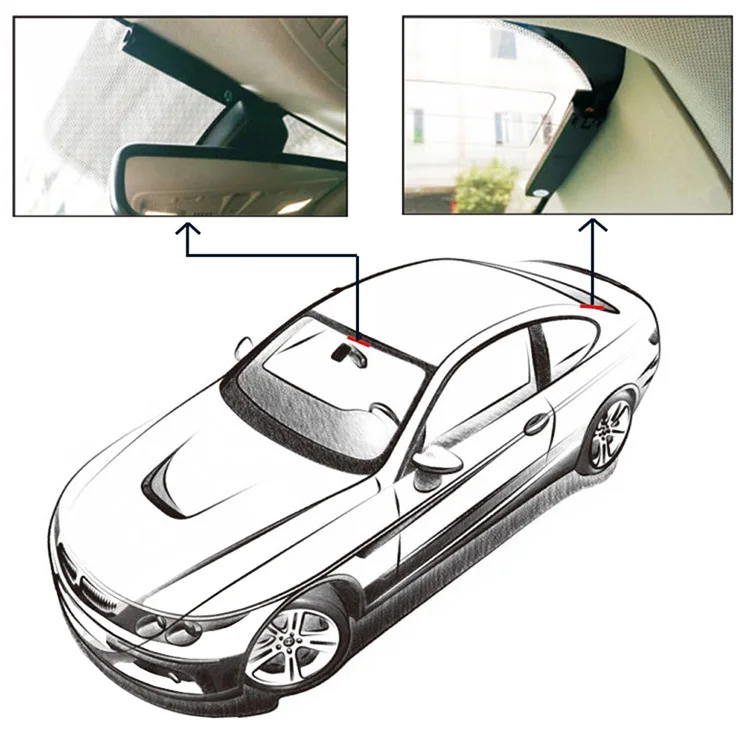

If you order a model with PKE keyless entry.Please refer to the picture to place the PKE antenna. Be careful not to stick the PKE antenna to metal, because the metal will absorb electromagnetic signals, which will make the induction automatic unlocking insensitive.

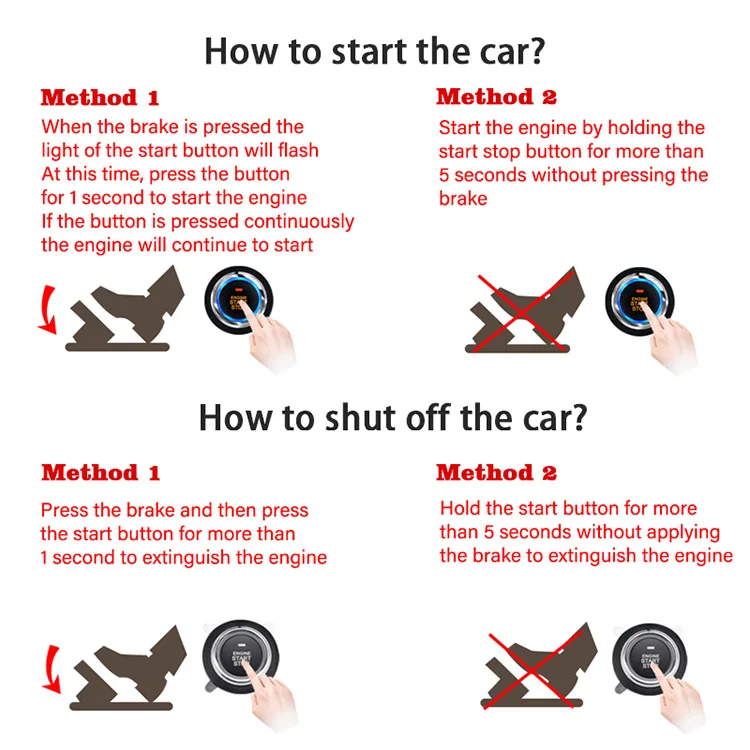

Push button to start /stop engine:
Turn On: step on the brake, press the start-stop button once, the engine turn on; do not step on the brake, hold down the button for 5 seconds to turn on the engine. If you press the button forever, the engine will start forever.
Turn Off: step on the brake, press the button once, the engine will turn off; do not step on the brake, hold down the button for 5 seconds to turn off the engine.
